Steel Ground Solar PV Mounting Structure Ground Screw Solar Power System

Ground PV Screw Solar Mounting System main structure is HDG steel, beautiful appearance, strong structure and reliable. And can be customized according to customer requirements of different angle bracket.
  • Item NO.:

    RS-GM-004
  • Payment:

    L/C, D/A, D/P, T/T, Western Union, MoneyGram.
  • Product Origin:

    Xiamen China
  • Shipping Port:

    Xiamen
  • Lead Time:

    2 weeks
  • Product Detail

Product Description:

Ground screw solar mounting system for PV Plant

material 6005-T5/Q235
application ground screw mounting system
module array 2*2/ 4*1/ Customized
tilt angle as required
panel type with frame
panel orientation transverse/vertical
wind speed 62m/s
snow load 1.4kn/square meter
OEM mounting parts accepted
warrenty 25 years service time


Features of mounting system
1.Widely Application
The structure is made of galvanized steel/anodized steel,with the quality of corrosion-resistance,light-weight and strong intensity. It can be used in extremely bad installation condition.
2.Strong Compatibility
The structure can not only fit for different PV kits, but also work with different PV arrangements which can be interchange randomly.
3.Safety and Reliability
Load-bearing,wind resistance and seismic resistance has been given sufficient consideration. All of these functions have beentested extremely, which will ensure the safety of the system.
4.Easy Installation
Most of the parts can be pre-assembled on factory, which not only can to save your install time, but also your cost.
5.Flexibility
Considering the construction error, the structure has been well-design that make it can adjust flexibly.
6.Warranty
10-year warranty for the mounting system and  25 years service time.

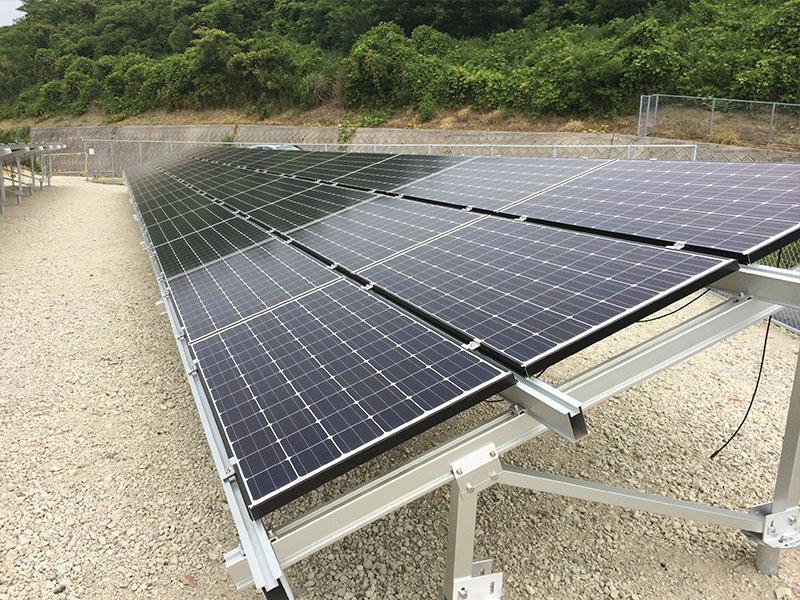

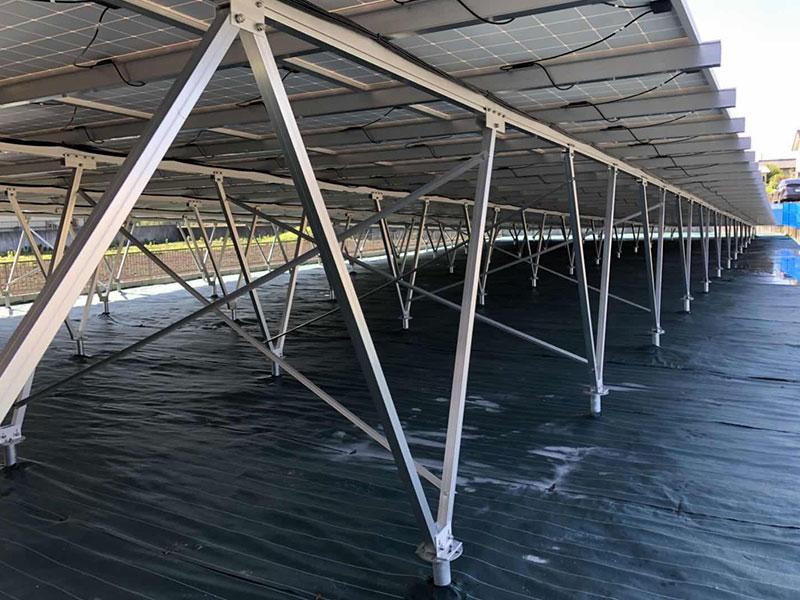

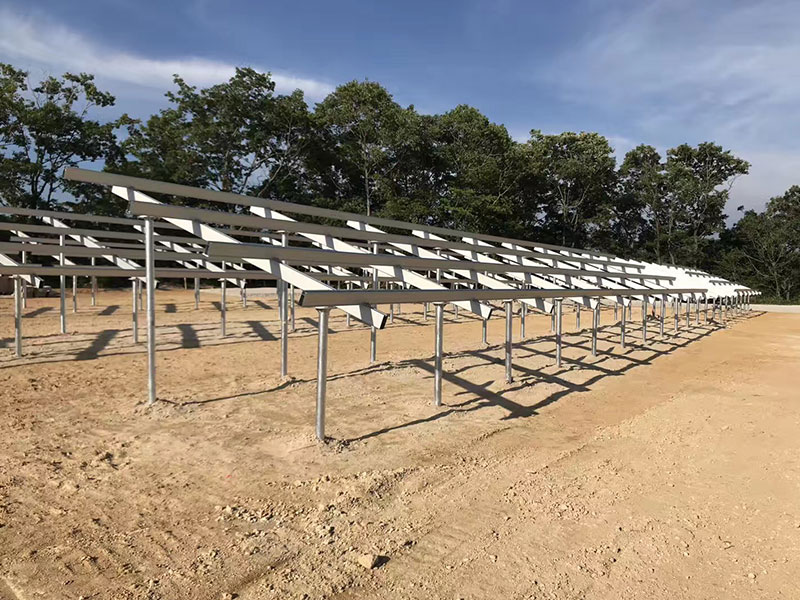

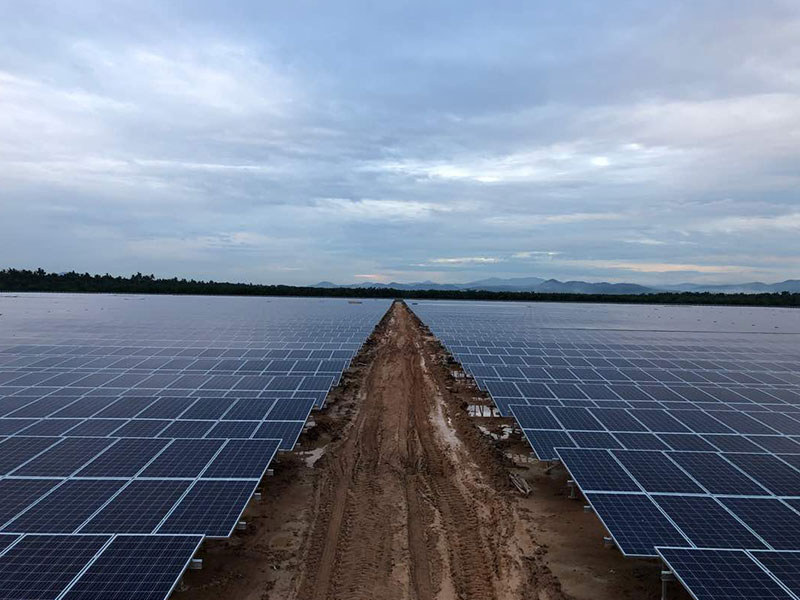

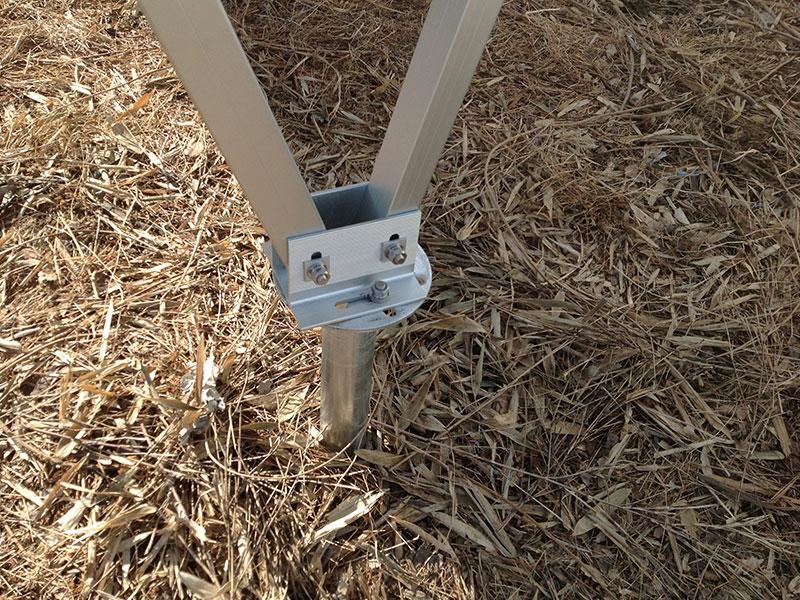

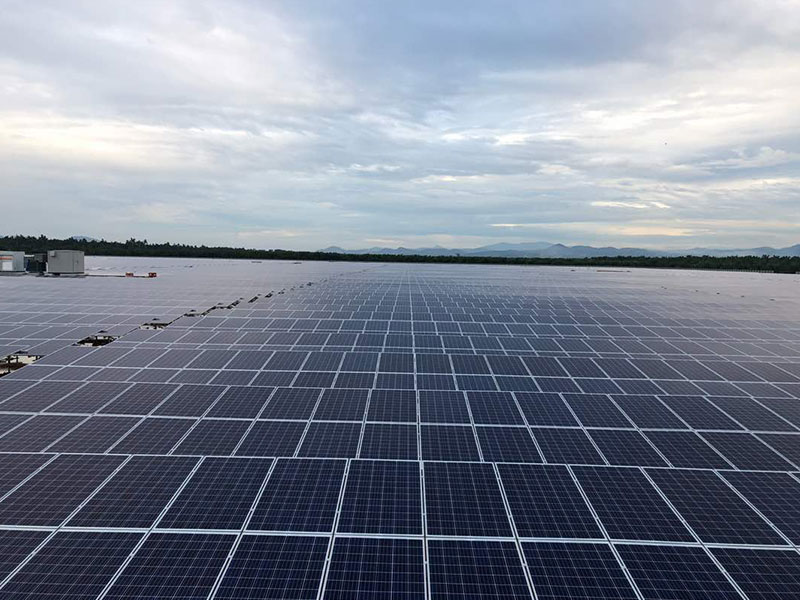

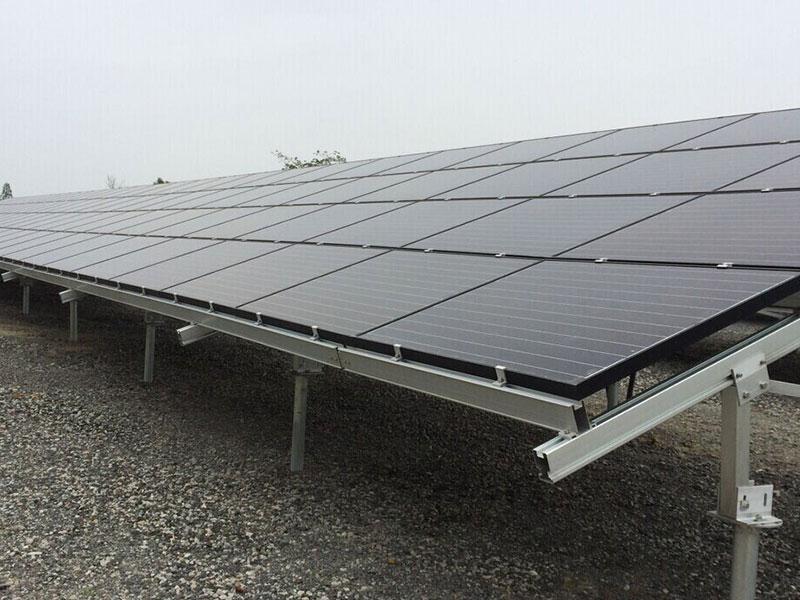

Photo Show

Steel Ground Solar PV Mounting Structure Ground Screw Solar Power System

Steel Ground Solar PV Mounting Structure Ground Screw Solar Power System

Steel Ground Solar PV Mounting Structure Ground Screw Solar Power System
