Floating Solar PV Mounting System

/

Single Row- TGW01-G1

/Floating solar system mounting bracket for solar panel

Floating solar system mounting bracket for solar panel

This floating solar mounting system is different from the traditional mounting projects on the ground, roof, andwindow. It can reduce water evaporation, and utilize the cooling effect of water to increase the power generation.
It is easy to install without heavy equipment, and also safe and convenient to maintain.It is easy to install, requires no heavy equipment, and is safe and easy to maintain.
The tilt angle can be customized to any angle from 0 to 25°, without the need to make a new mold.
  • Payment:

    TT, L/C
  • Product Origin:

    Xiamen, China
  • Shipping Port:

    Xiamen,China
  • Lead Time:

    within 20 working days
  • Product Detail

Floating Solar Mounting System

Floating Solar Mounting System

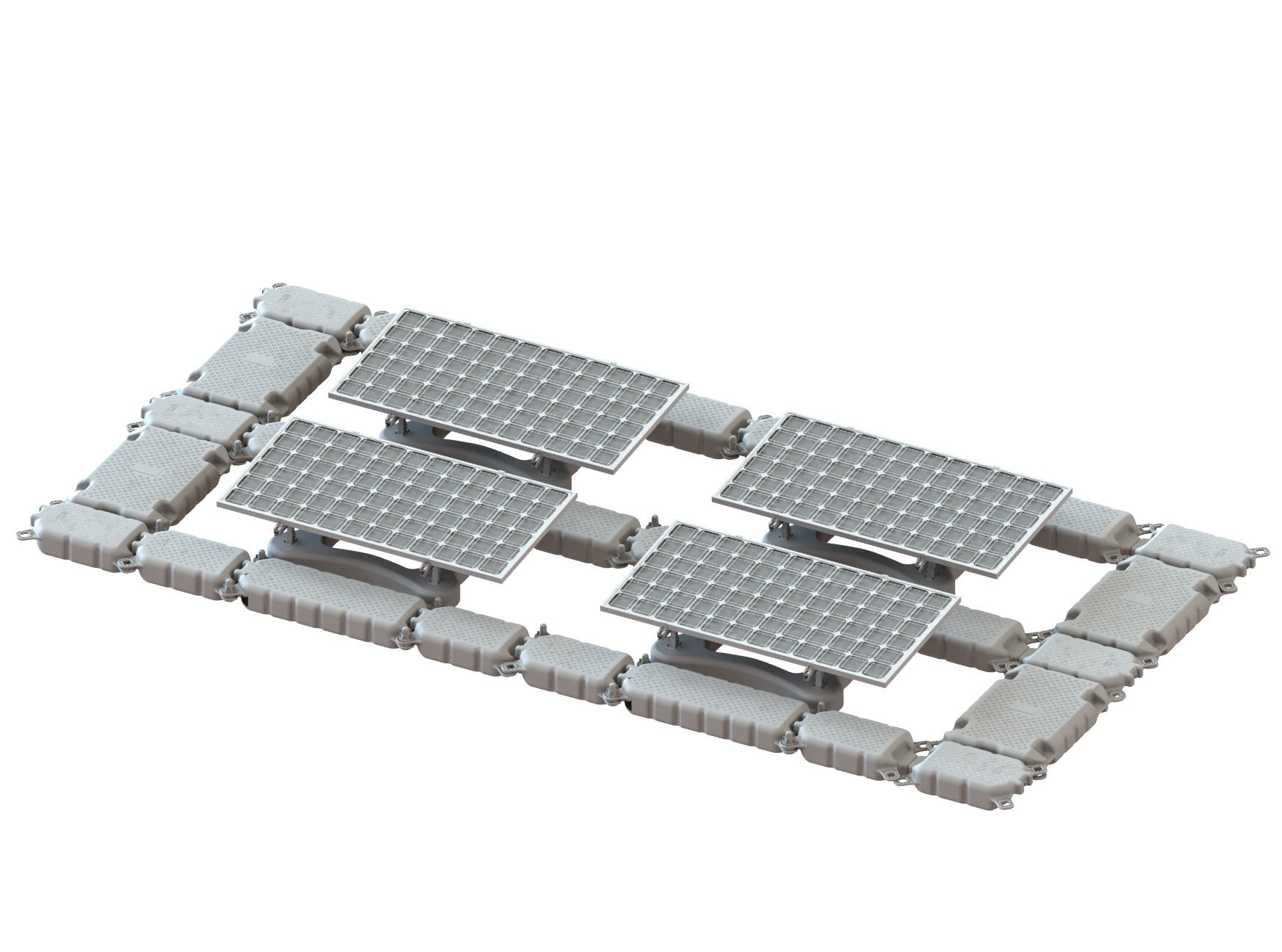

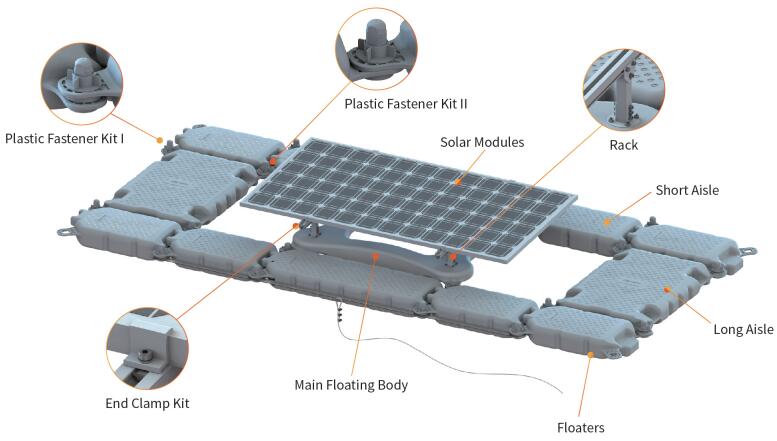

Component

Floating Solar Mounting System

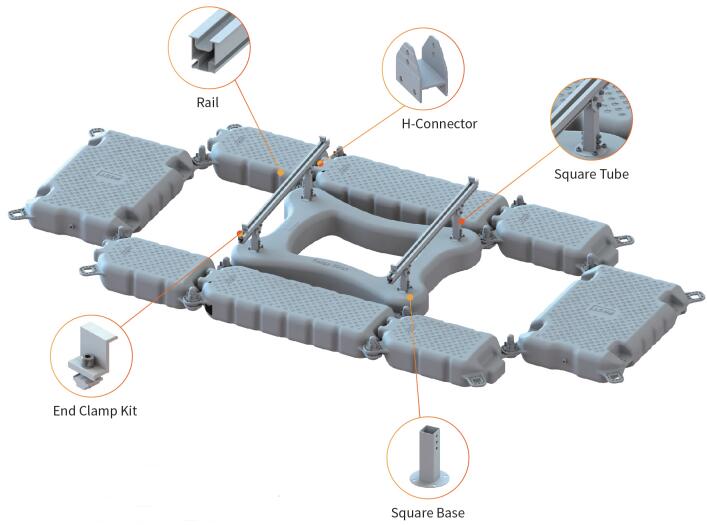

Aluminum Bracket

Floating Solar Mounting System

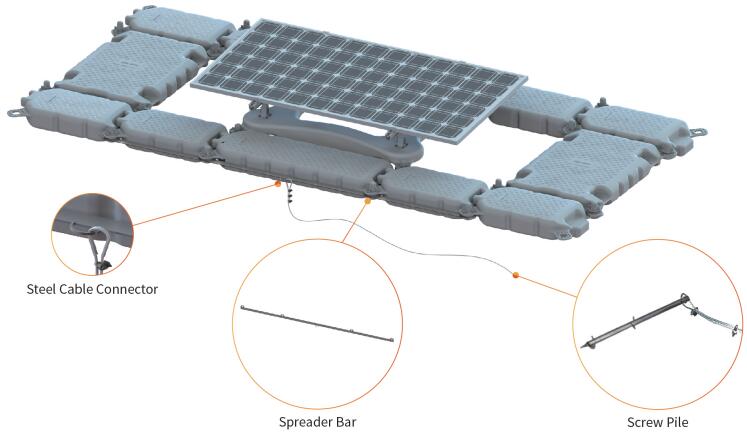

Anchoring System

Floating Solar Mounting System

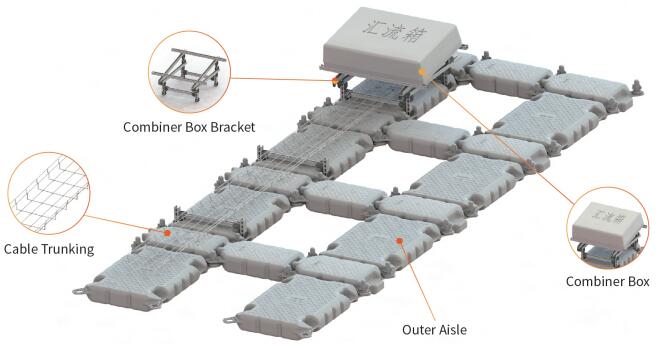

Mounting Solution for Combiner Box, Cable Trunking, and Aisle to Bank

Floating Solar Mounting System

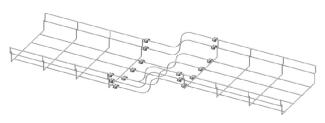

Types of Trunking


Floating Solar Mounting System

Floating Solar Mounting System

Technical Details

Installation Site   On Water Surface (lake, reservoir, dam, pond, etc.)
Wave Height   ≤0.5m
Water Flow Rate   ≤0.51m/s
Wind Load   ≤36m/s
Snow Load   ≤0.45kN/mm2
Tilt Angle   0~25°
Standards   BS6349-6, T/CPIA 0017-2019, T/CPIA0026-2019, NBT10187-2019, GBT 13508-1992
Material   HDPE, Al6005-T5, SUS304
Warranty   10-Year Warranty and 25-Year Service Life
