Linear actuator single axis PV solar tracking system

Horizon P1 - Horizontal Single Axis Tracker (Linear Actuator / Push Rod)
  • Item NO.:

    Horizon P1
  • Payment:

    TT, L/C
  • Product Origin:

    Xiamen, China
  • Shipping Port:

    Xiamen,China
  • Lead Time:

    within 20 working days
  • Product Detail

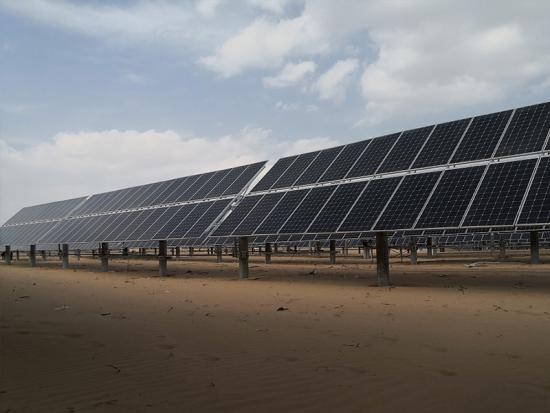

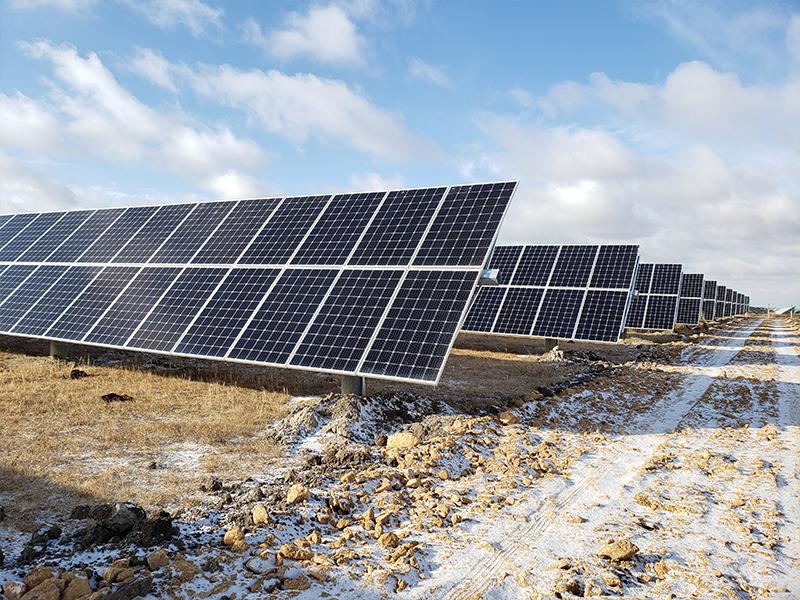

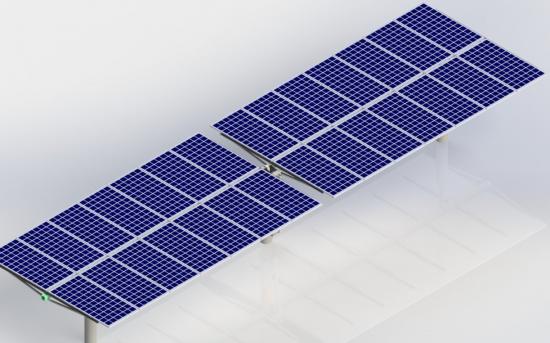

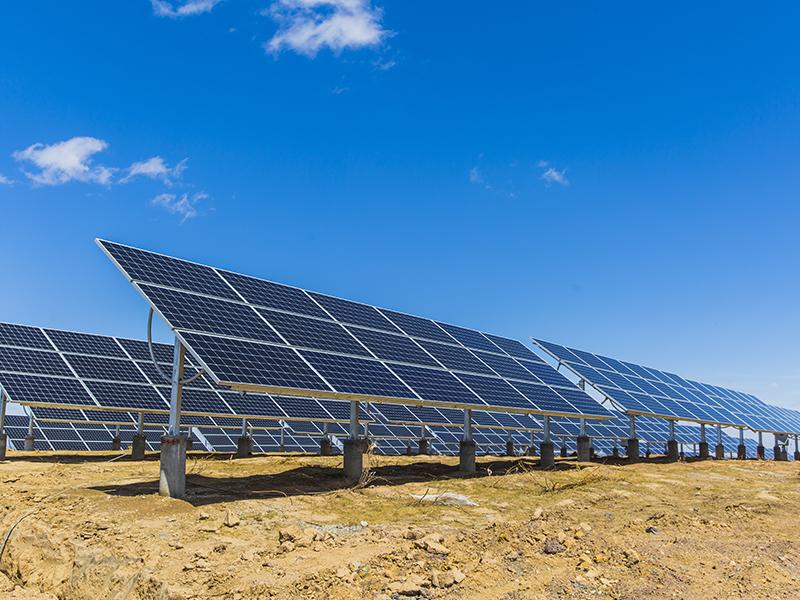

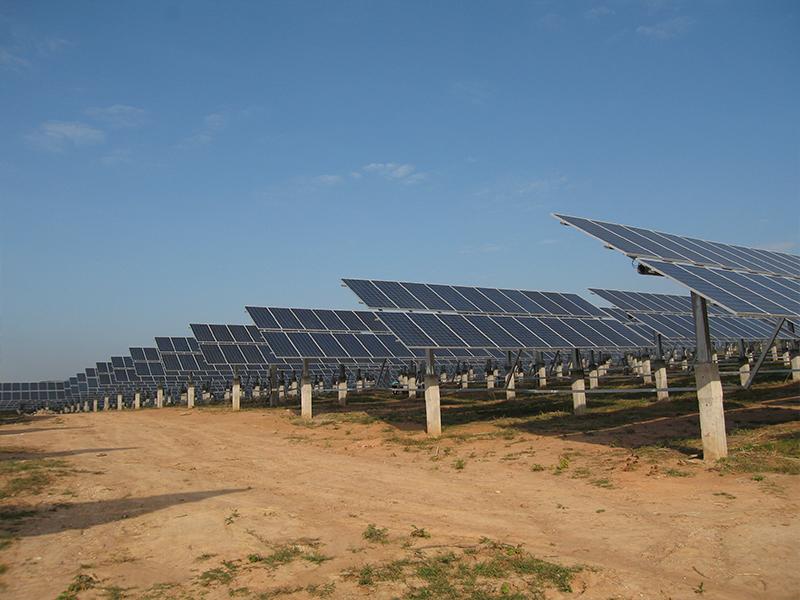

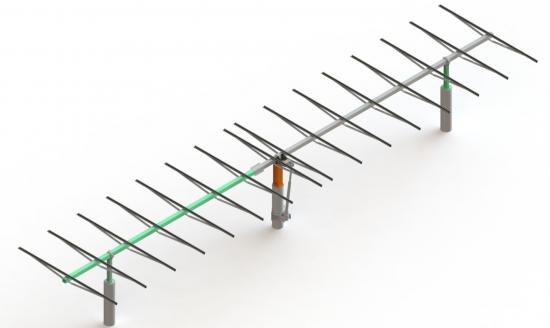

Single Axis Solar Tracking System

Characteristics and features:

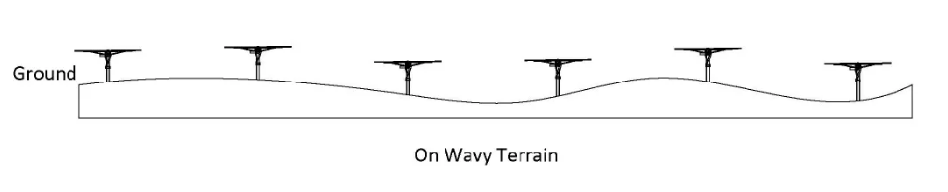

Max. gradient difference adaptability in N-S direction up to 15%.

Excellent compatibility with all conventional solar modules available in the industry: framed, frameless and bi-fixed 2V independent module design, which significantly reduces the number of piles and the cost of construction
Free up obstacles between trackers in N-S direction, easy to maintain and clean.

Multi-point unit, within 20 meters of length for each tracker in the north-south direction, which greatly reduces the impact of wind torsion on the support, improves critical anti-wind capacity, avoids the instability that the traditional 2V system can have in extreme weather.

Linear actuator single axis PV solar tracking system design is configured with a single controller set, which ensures real-time point-to-point monitoring, easy to detect points of failure in time each time and reduces output loss.


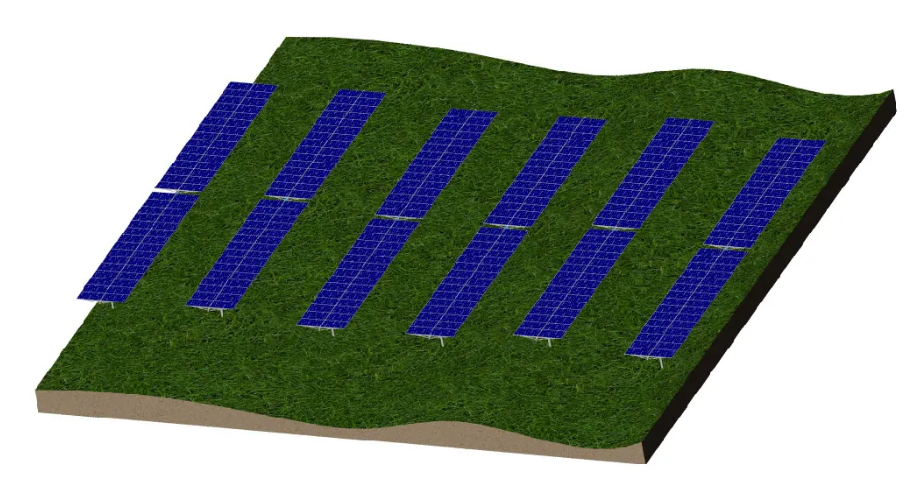

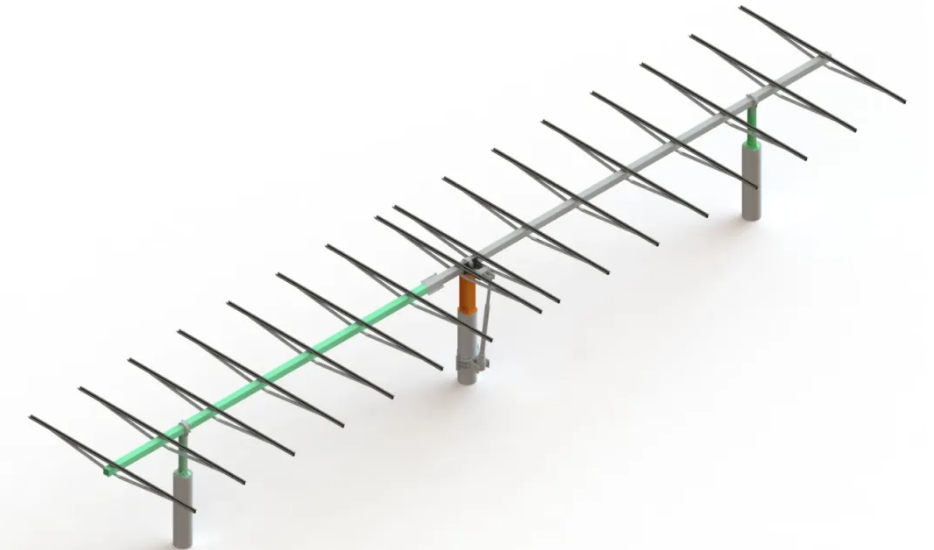

Single Axis Solar Tracking System

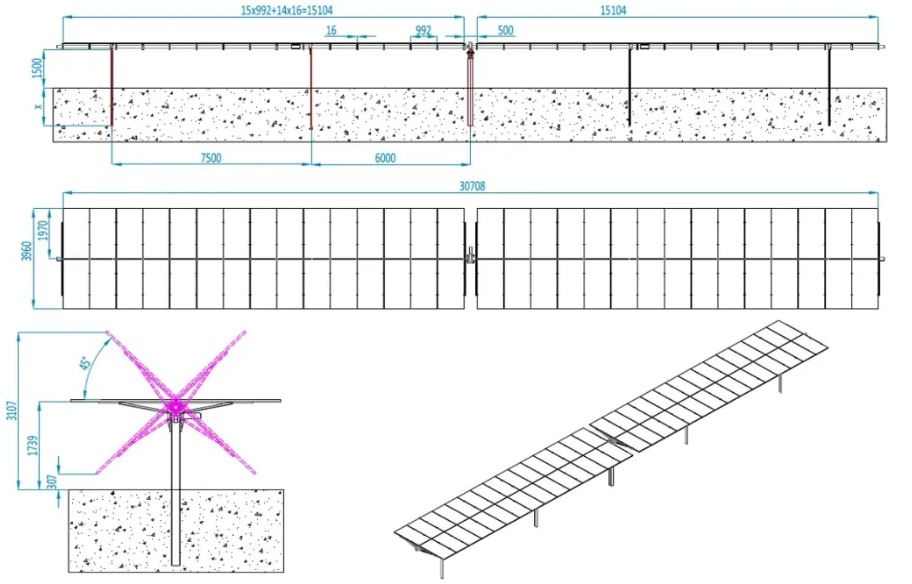

Single Axis Solar Tracking System

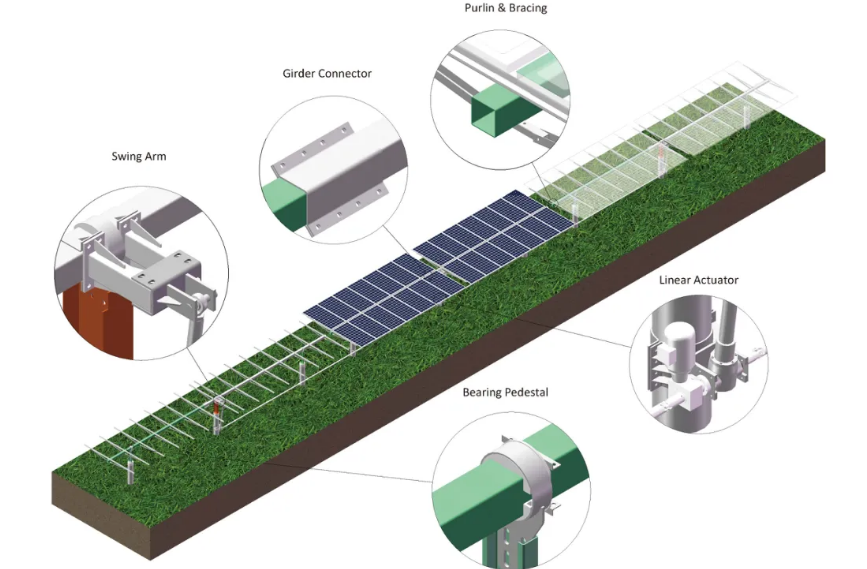

Single Axis Solar Tracking System

Technical Details
Tracking Structure

Tracking Technology Horizontal Single Axis Tracker
System Voltage 1000V / 1500V
Tracking Range (East to West) ±45°
Working Wind Speed 18 m/s(Customizable)
Max. Wind Speed (at Stow Position) 45 m/s (ASCE 7-10)
Modules per Tracker ≤90 in portrait(Customizable)
Principal Materials HDG Q235B/Q355B/ZAM
Mean Coating Thickness ≥65μm
Drive System Linear Accuator
Foundation Type PHC Pile / Concrete / Driven Pile

Control System
Tracking Control  MCU
Tracking Mode Closed Loop Time Control + GPS
Tracking Accuracy <1°
Communication Wired/ Zigbee
Powder Acquisition Mode External Supply / Self-powered
Communication Protocol Modbus RTU
 Auto Stow at Night Yes
Auto Stow During Strong Wind Yes (response after 10 seconds)
Optimized Backtracking Yes
Protection Degree IP65
Working Temperature -30°C ~ 65°C
Anemometer Yes
Power Consumption 0.3KW/H per day
