Horizontal Single Axis Solar Tracker

/Linkage row horizontal Single-axis solar tracking system

Linkage row horizontal Single-axis solar tracking system

It is horizontal with respect to the ground. Horizontal trackers usually have the panel face oriented parallel to the rotation axis.

  • Item NO.:

    RS-SAT01L
  • Payment:

    T/T L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    30 days
  • Product Detail

Linkage Row Horizontal Single Axis Tracker


It is horizontal with respect to the ground. Horizontal trackers usually have the panel face oriented parallel to the rotation axis.

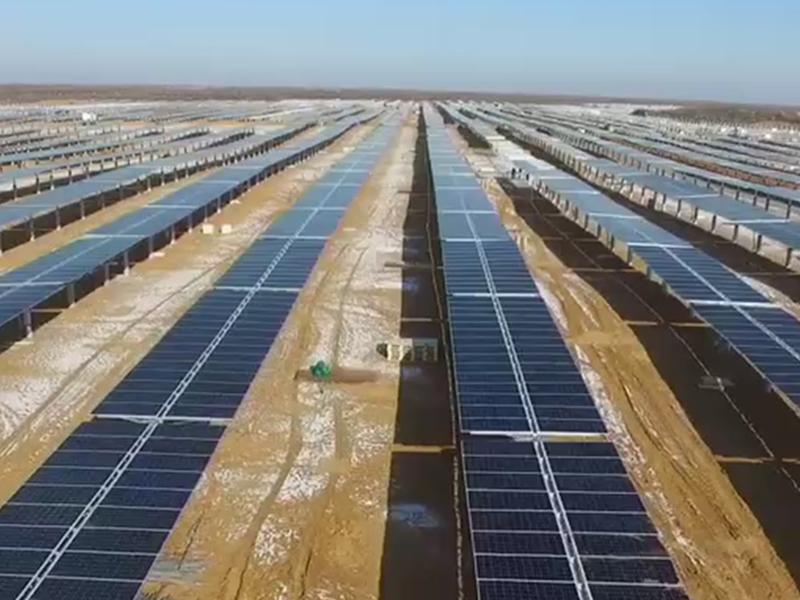

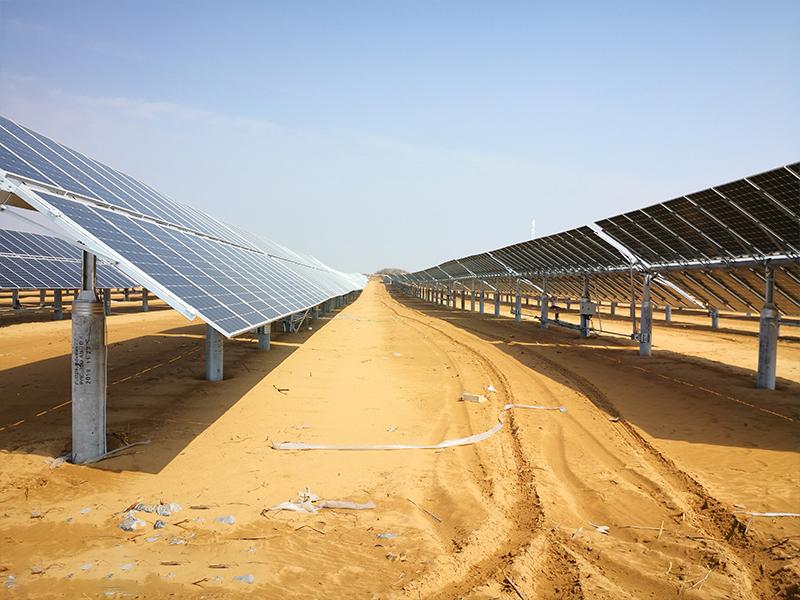

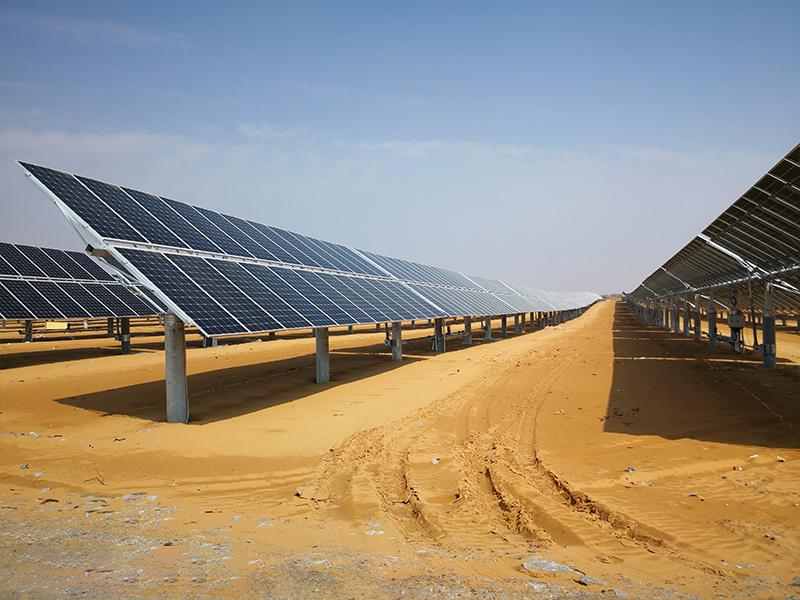

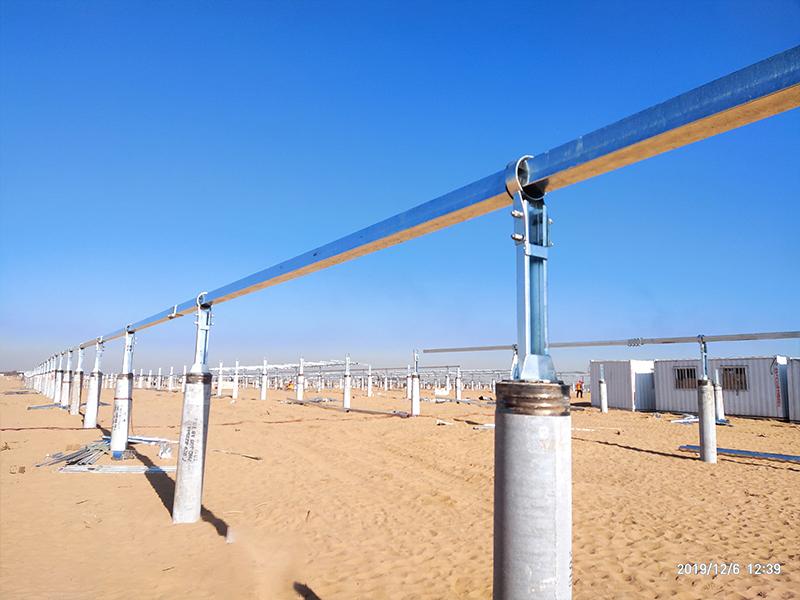

In single-axis horizontal trackers, a long horizontal tube is supported by bearings mounted on frames. The solar panels are mounted on the tube and the tube will rotate on its axis to follow the apparent movement of the sun throughout the day.

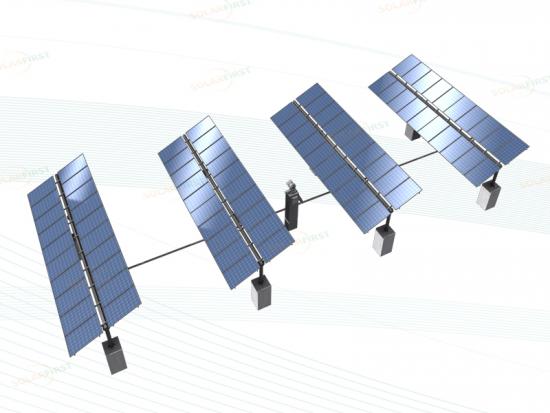

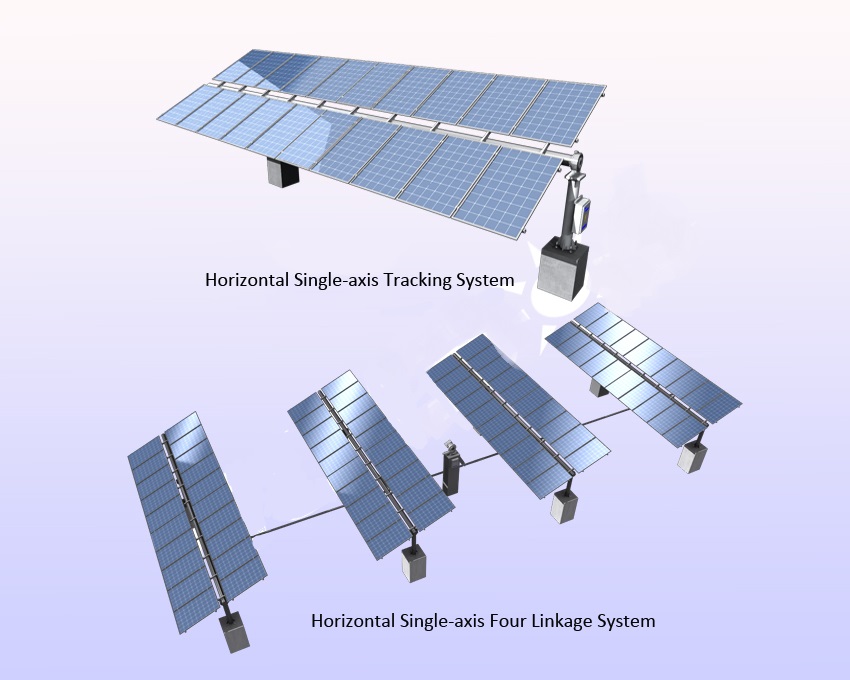

                                                     Linkage Horizontal Single Axis Tracking System

Applicable Areas

 1.  Mid-high latitude flat land, mountainous terrain

 2.  Suitable for all types of modules, C-SI, A-SI, bi-facial modules



Features & Advantages

 1.  Single Higher installation capacity, single array up to 400KW max.

 2.  Fewer posts compared with competitors', greatly saving cost in fabrication and construction.

 3.  Higher terrain flexibility, adaptive slope N-S direction 5°,E-W 12°.

 4.  Higher reliability control& drive system, Siemens PLC control and verified components ensure the reliability of controller, one-click operating design, fewer number of control and drive units, fewer piles, allow for simple installation,operation and maintenance.

 5.  Full automatic tracking, high tracking accuracy of less than 0.5°,additional electric power output by 15-25%.

 6.  Centralized control,convenient for overall arrangement for power/communication wires.

 7.  Wireless monitoring system & closed loop control system,maximize tracking accuracy and system reliability.


Technical Specifications







Technical Data of System

Type

Linkage Row Horizontal Single Axis

Single array capacity(DC)

50KW~400KW Max

Module number (pcs)

200~1200

System max. voltage

1000V/1500V

Tracking range

±45°

Increased power output(compared with fixed tilt)

10%~25%









Mechanical Parameters

Drive type

Slew drive

Structure material

HDG

E-W slope adaptability

≤15°

S-N slope adaptability

≤15°

System dimensions (㎡)

Depending on array designed

Foundation type

Concrete footing or ramming pile

Max. Wind resistance

40m/s(customizable)

Safe working wind load

18m/s











Electrical Parameters

Power supply

110V/220V/380VAC

Motor

 24VDC

Frequency

50/60Hz

Drive power

100~200W

Power consumption

≤0.3kWh/day(≤3‰)

Control mode

Closed loop time control

Night return

yes

Back tracking

yes

Working temp. range

—25℃~65℃

Protection class

IP65

Communication protocol

RS485/Modbus


Foundation Tolerance

Adaptive Slope

N-S high adaptability, E-W 10°

N-S Tolerance

±50mm

E-W Tolerance

±50mm

Elevation Tolerance

±50mm
