Solar carport PV mounting structure for car parking

Ray Solar Aluminum Carport Mounting Systems specializes in manufacturing and designing to meet the needs of various pole mount installation.

  • Item NO.:

    RS-CM-004
  • Payment:

    L/C, T/T, D/P, Western Union, Paypal
  • Product Origin:

    Fujian, China
  • Color:

    Normal
  • Shipping Port:

    Xiamen
  • Lead Time:

    within 15-30 working days
  • Product Detail

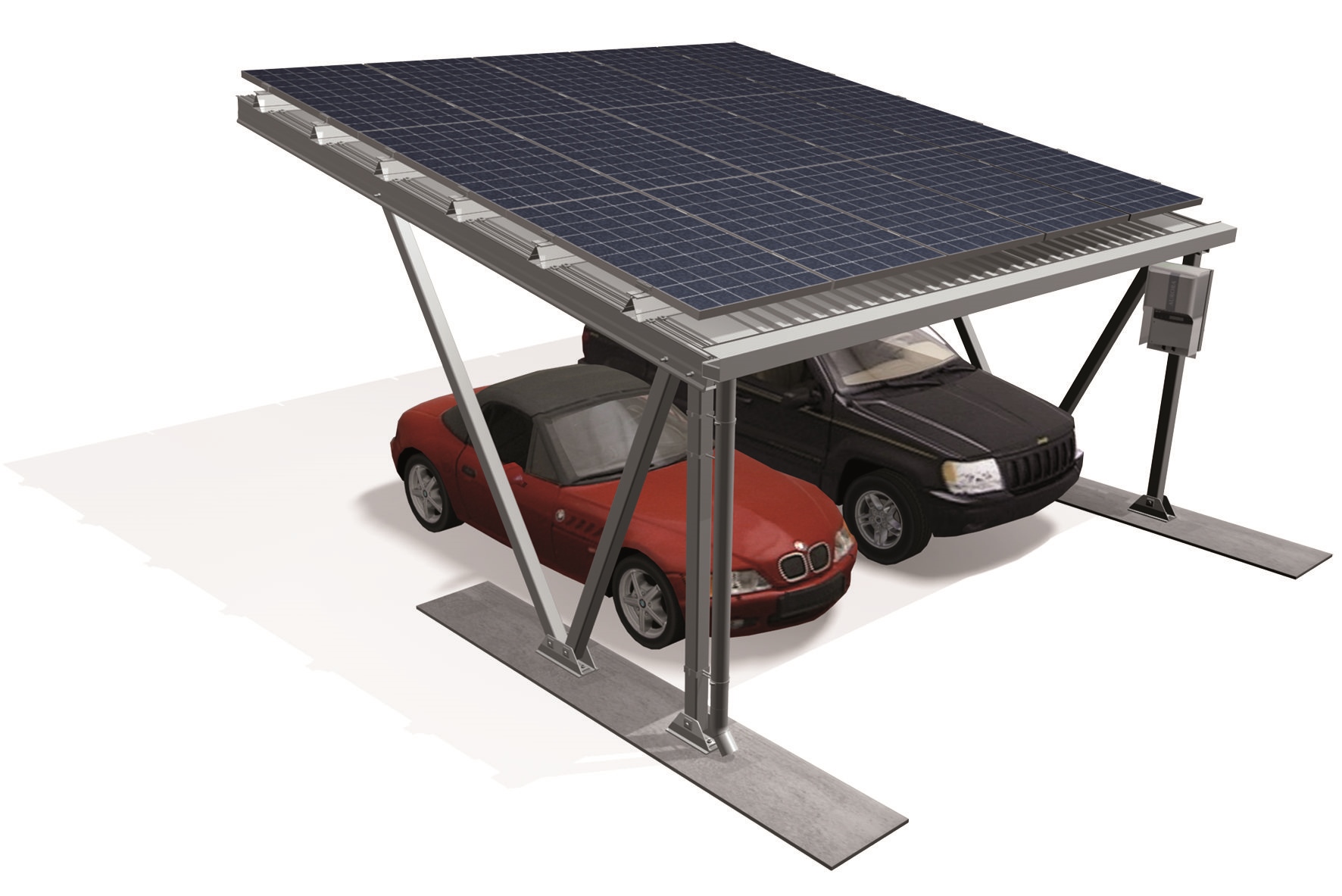

Solar PV Carport Mounting Structure N Shape Design

Aluminum carport mounting systems adopts triangle supporting structure technology, which is very strong and secure. With full aluminum alloy and SS 304 bolts & nuts material, it is with concise and beautiful appearance. It is quite easy and fast installation without any welding in the site.



Specifications for PV Carport Mounting Structures

Mount Type

carport mounting systems

Applicable site

Open ground

Applicable Module

framed panel or frameless panel

Module Orientation

landscape or portrait

Wind load

Up to130mph(60m/s)

Snow load

Up to 30psf (1.4KN/m2)

Material

aluminum alloy

Warranty

10years on Al6005 and SS304



Features of Solar First Carport Mounting System

• Easy Installation

  Parts have been high pre-assembly on factory to save your installation time.

• Safety and Reliability

 Check and test the structure strictly to against the extreme weather condition.

• High Flexibility

Smart Designed project-specific to meet local building situations.

• Extremely Fastness

All racks connected N/S, E/W. Each section is bonded together by the N/S connection

• Long lifespan

 Strong Anti-corrosive, Strong stability, High Intensity. 10 years Warranty for guarantee.

• High quality service

 Customized requirements available


Design Details

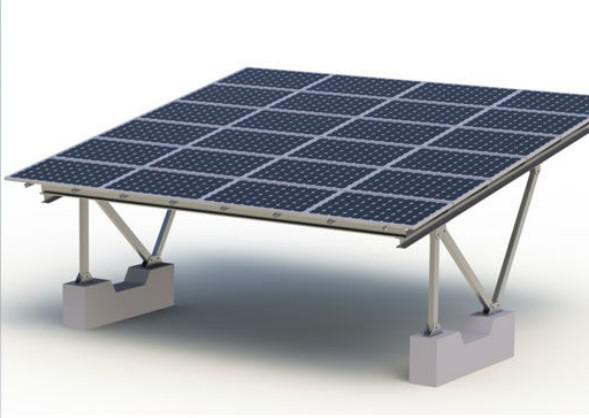

Solar PV Carport Mounting


PV Mounting Structure for Car Parking

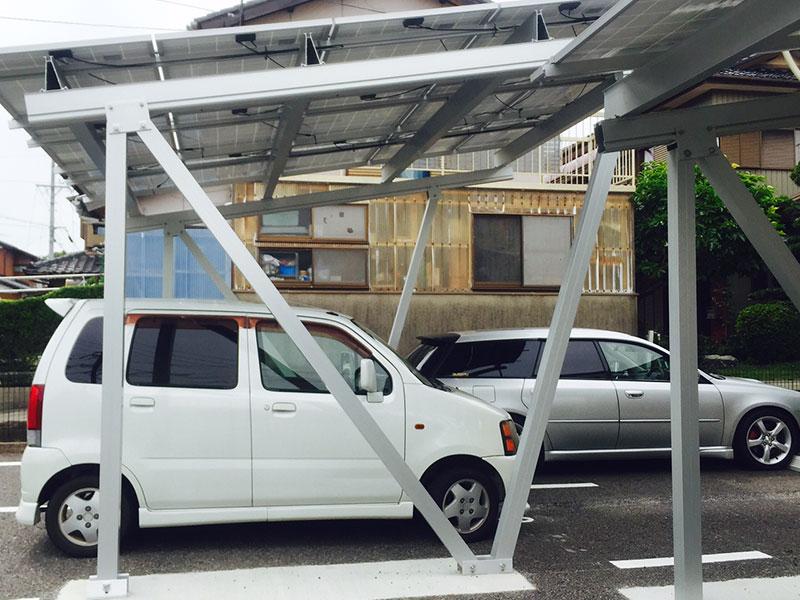

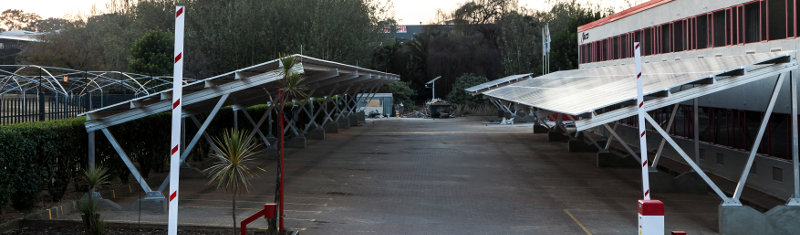

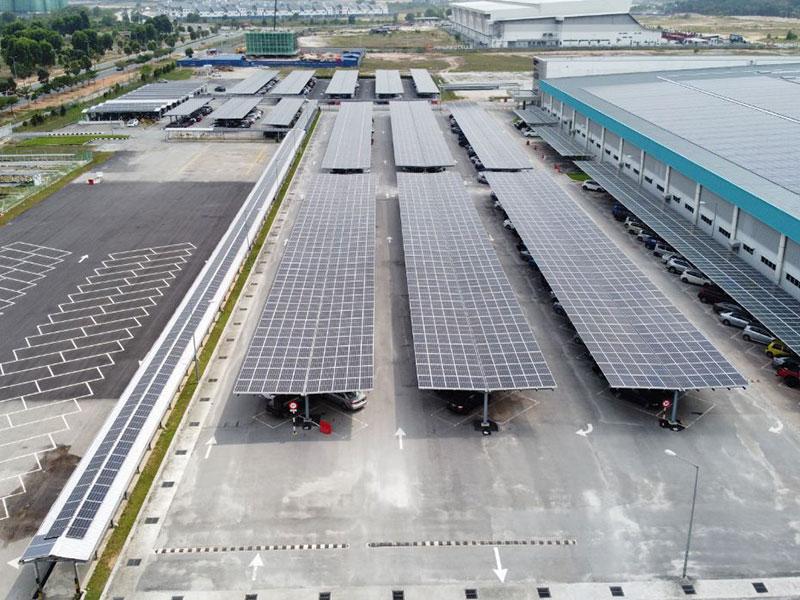

Photo Show of Solar First Carport Mounting System

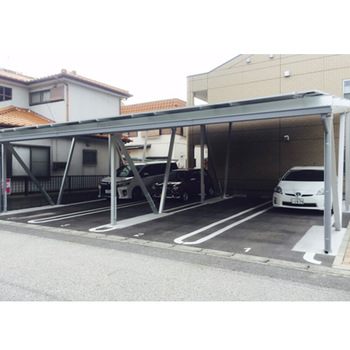

 N shape mounting structure of carN type mounting Structure for Car PV parking
