Floating Solar PV Mounting System

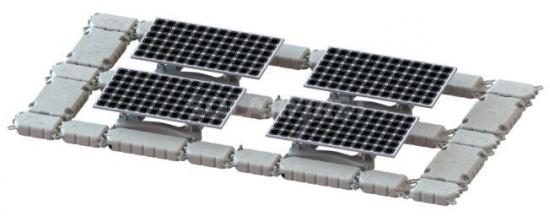

Double Row- TGW02-G2

/PV Floating Solar Mounting System

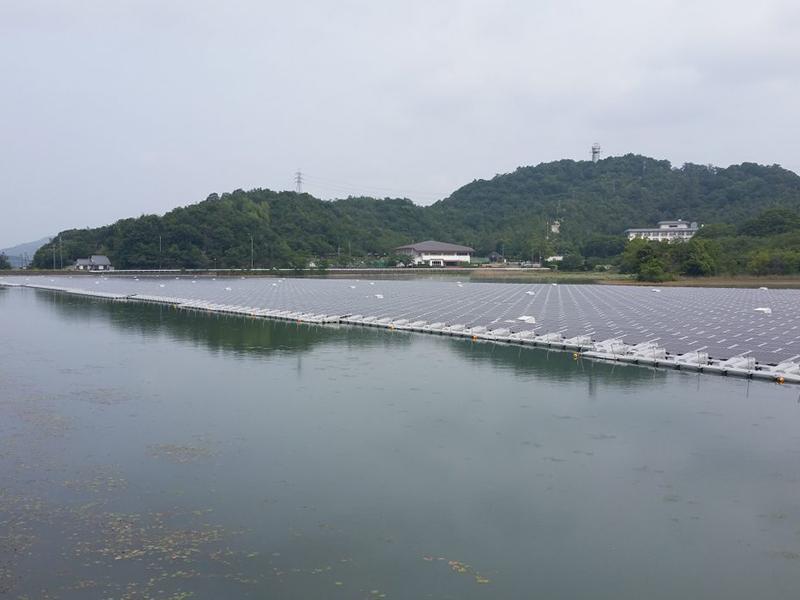

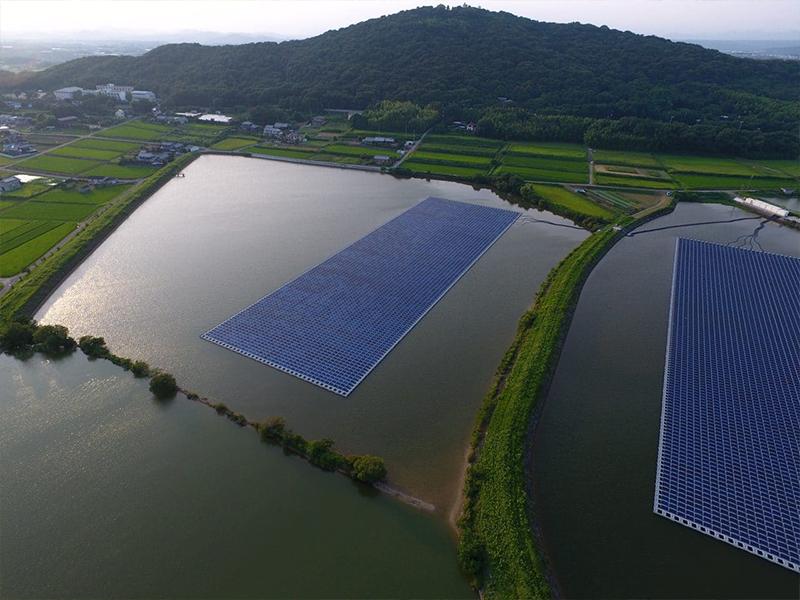

PV Floating Solar Mounting System

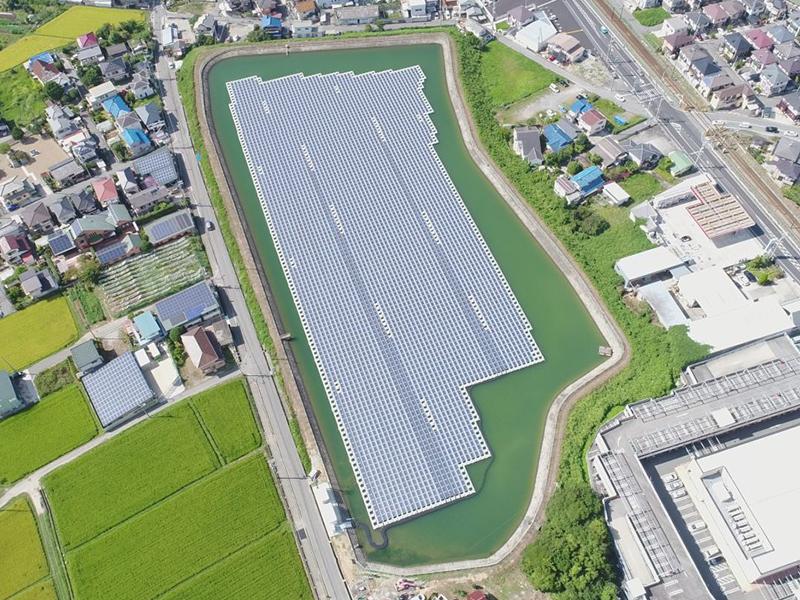

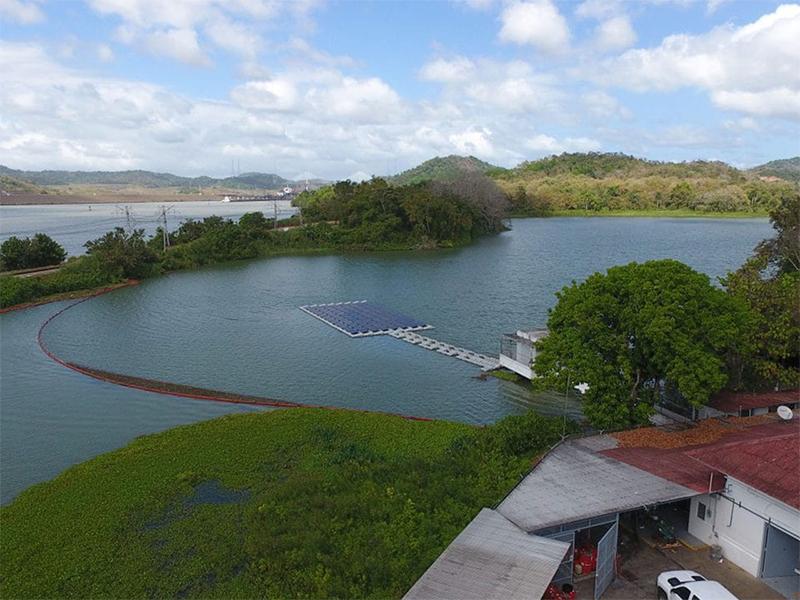

This series of products is an installation solution for mounting solar PV modules, inverters, converters, transformers, and cables on water, such as dams, lakes, ponds, reservoirs, and coal mining subsidence areas.
  • Product Detail


Floating photovoltaic system is different from the traditional mounting projects on theground ,roof,and window.

With the land available for the construction of photovoltaic power plants become increasingly scarce in thefuture, the advantages of floating photovoltaic systems on water are slowly gaining attention from the photovoltaicindustry.


  Optimized solution for specific site.
  Natural cooling effect of the water.

2.Easy Operation
  Easy to install, no heavy tools or machines needed.
  The modular design matches all scale of projects and electrical configurations.

  UV-stabilized HDPE material.
  Site-specific anchoring system.
  Aluminum bracket helps to reduce risk of fire.

  Drinking water compliant; NO pollution on fresh & natural waters.
  Reduces evaporation, conserves water & preserves existing ecosystems.

Floating Solar PV Mounting System manufacturer

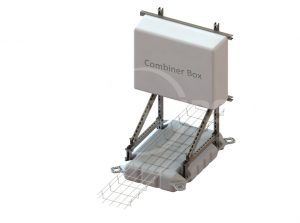

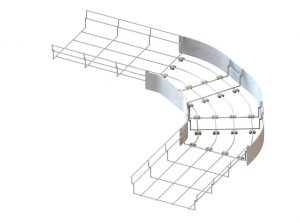

Mounting Solution for Combiner Boxes and Cables

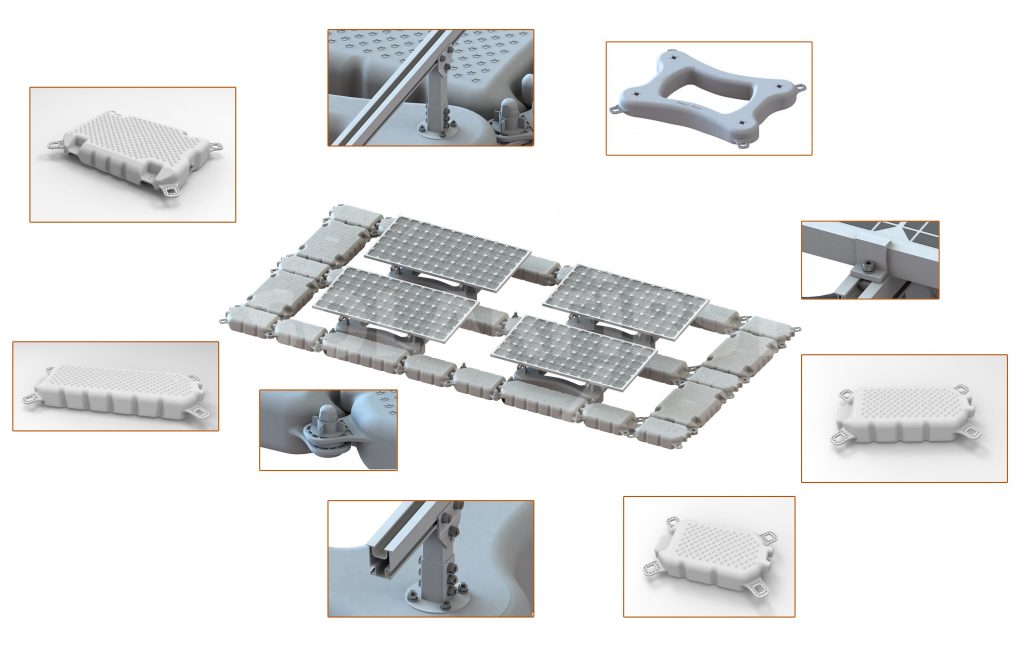

Technical Details

Installation Site Lake, Reservoir, Dam, Industrial Pond, etc…
Floater’s Material High-Density Polyethylene (HDPE)
Accessories’ Material AL6005-T5
Fastener’s Material SUS304
Solar Module Type Framed & Frameless
Solar Module Orientation Landscape
Tilt Angle 5~15°
Wind Speed 50m/s
Snow Load 1kN/m2
Color Gray or Cusomizable
Design Standards T/CPIA 0017  /  JIS C8955:2017  /  AS/NZS 1170  /  ASCE 7-10

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products

Xiamen Ray Solar Technology Co., Ltd. , driven by its mission "Green Energy", is a global leading manufacturer of solar racking,tracking systems,floating and carport systems, providing one-stop reliable solar mounting system solutions with 5GW sold over 80 countries and regions worldwide.

Home Use Tilted Single Axis Solar Tracker
Single axis solar tracking system with tilted modules

Ray Solar tilt single-axis solar trackers are designed for flat, mountainous terrain at mid to high latitudes (more suitable for south-facing mountains), increasing power output by approximately 20-28% over fixed tilt systems.

1 Axis Solar Tracker supplier
Linear actuator single axis PV solar tracking system

Horizon P1 - Horizontal Single Axis Tracker (Linear Actuator / Push Rod)

concrete solar mount structure manufacturer

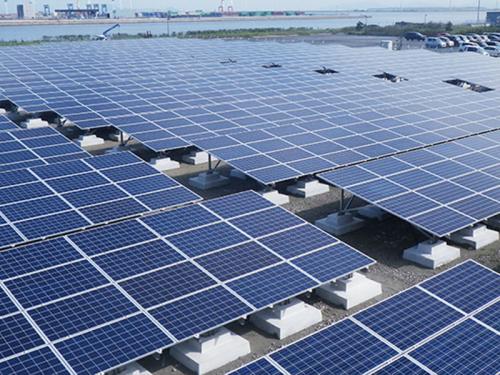

Concrete Foundation Ground Solar Mount Brackets

Concrete Foundation Ground Solar Mount is easy To Install---The simple design and pre-assembled components ensure a quick and easy installation.

Complete Solar Systems
3 KW 5 KW 8KW Mini Complete Home Solar Panel Energy Power Ongrid Solar Systems

Grid-tied, on-grid, utility-interactive, grid intertie and grid back feeding are all terms used to describe the same concept – asolar system that is connected to the utility power grid.

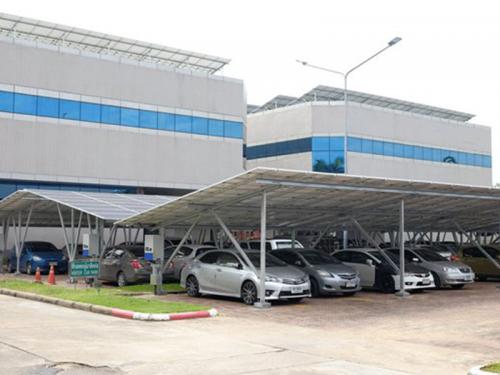

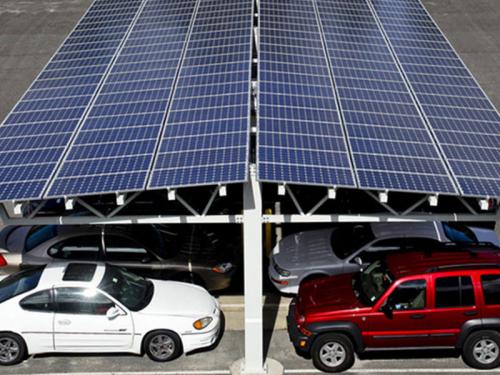

Solar carport PV mounting structure
