Sun tracker drive device dual-axis solar tracker system

Dual Axis Tracking Systems is one of the most promising product technology trends in solar today, which help users get more power generated. It can boost solar power system production by continuously optimizing the tracking algorithm of each individual row in response to site features and changing weather.
  • Item NO.:

  • Payment:

    TT, L/C
  • Product Origin:

    Xiamen, China
  • Shipping Port:

  • Lead Time:

    within 20 working days
  • Product Detail

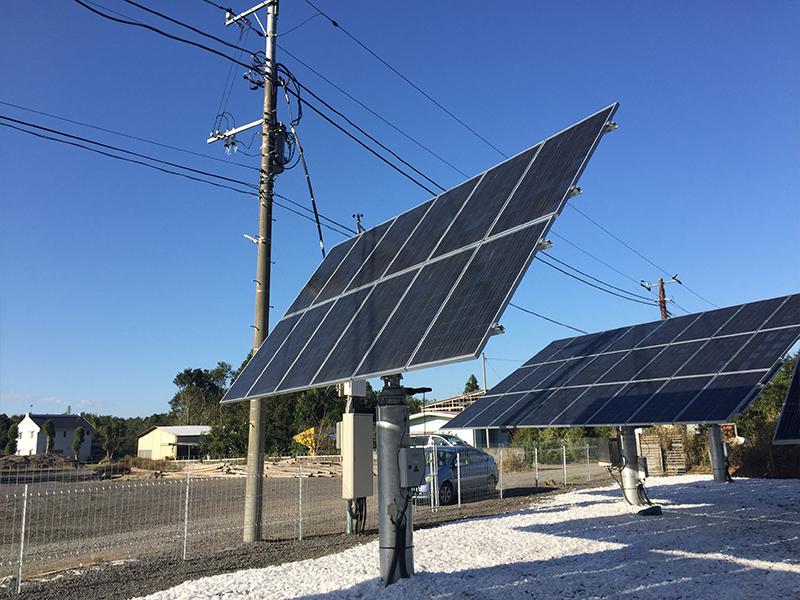

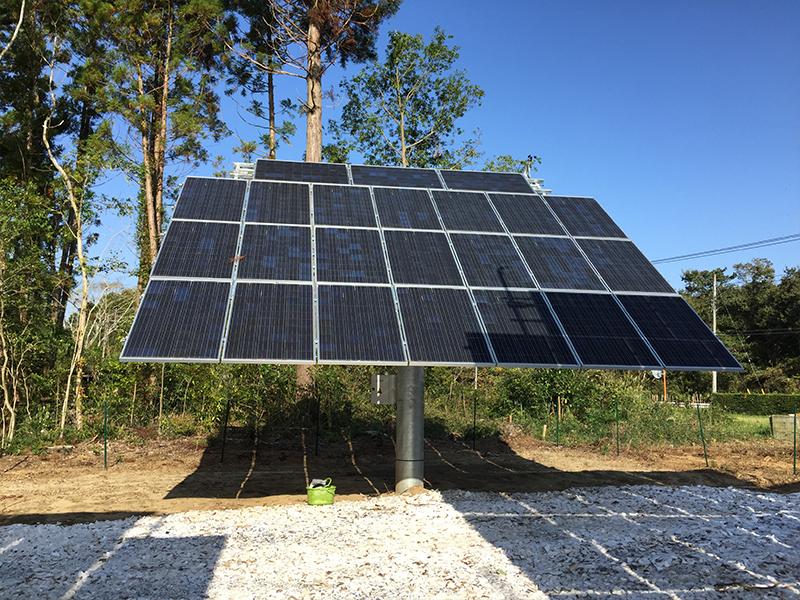

Dual axis solar tracking system

Dual axis solar tracking system

Technical Details

Tracking Structure

Tracking Technology Dual Axis Tracker
System Voltage 1000V / 1500V
Tracking Range X-Axis ±120°,Y-axis 0-60°
Working Wind Speed 18 m/s (Customizable)
Max. Wind Speed (at stow position) 35 m/s (ASCE 7-10)
Modules per Tracker ≤40 in Portrait (Customizable)
Principal Materials HDG Q235B / Q355B / ZAM
Mean Coating Thickness ≥65μm
Drive System Slewing Drive
Foundation Type Concrete

Control System
Tracker Control  MCU
Tracking Mode Closed Loop Time  Control + GPS
Tracking Accuracy <1°
Communication Interface Wired / Zigbee
Power Acquisition Mode External Supply / Self-Powered
Communication Protocol Modbus RTU
 Auto Stow at Night Yes
Auto Stow During High Wind Yes (response after 10 seconds)
Optimized Backtracking Yes
Protection Degree IP65
Working Temperature -30°C ~ 65°C
Anemometer Yes
Power Consumption 0.3KW/H per day

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products

Xiamen Ray Solar Technology Co., Ltd. , driven by its mission "Green Energy", is a global leading manufacturer of solar racking,tracking systems,floating and carport systems, providing one-stop reliable solar mounting system solutions with 5GW sold over 80 countries and regions worldwide.

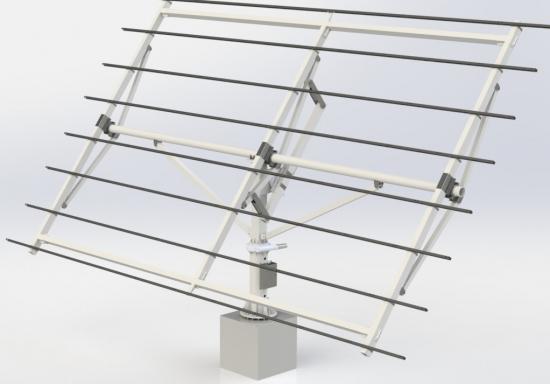

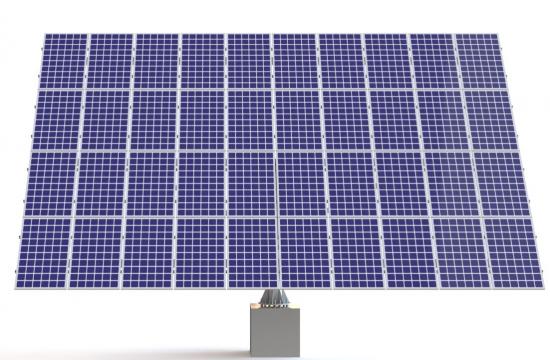

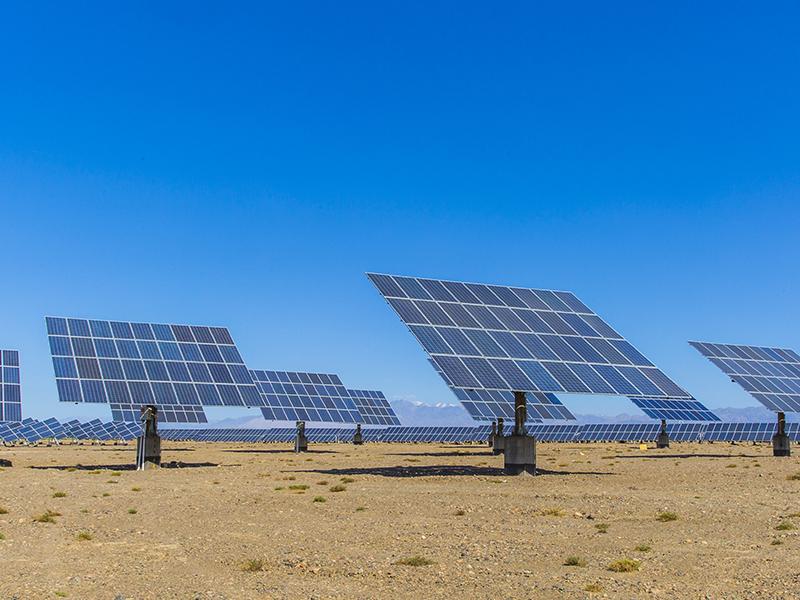

40-panel Dual Axis Solar Tracker manufacturer

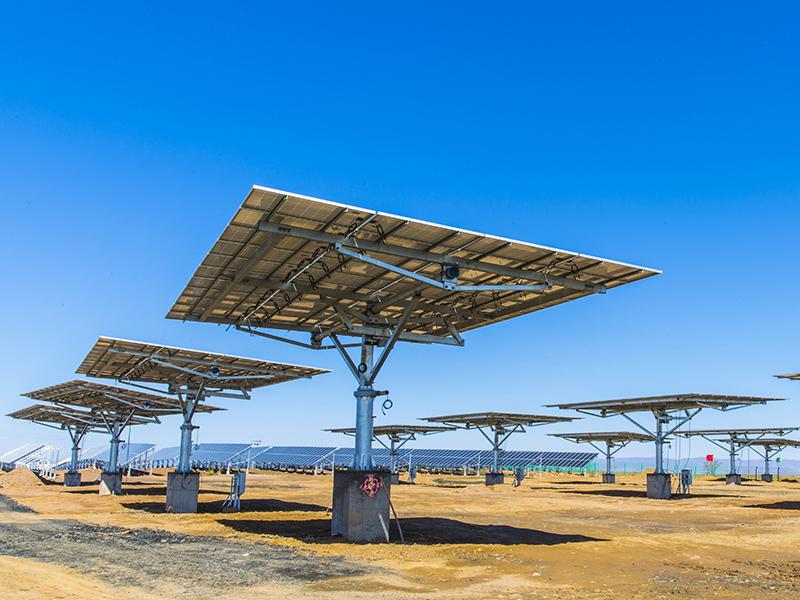

Sun tracker drive device dual axis solar tracker system

The Dual Axis Solar Tracker System is designed to optimize the operation of solar energy receivers. Dual-axis trackers allow optimal levels of solar energy due to their ability to track the sun vertically and horizontally.

Waterproof solar street LED light
All in one Waterproof 20W Solar Street LED Light

All in one Waterproof Solar Street LED Light,all-in-one design, the light and the solar panel of integrated solar street light are integrated into one structure, which is easy to install.

Single axis solar tracking system provider
Single-axis photovoltaic solar tracking system

The horizontal Single Axis Tracking System uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance microcontroller (DSP core), making the system accurate and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.

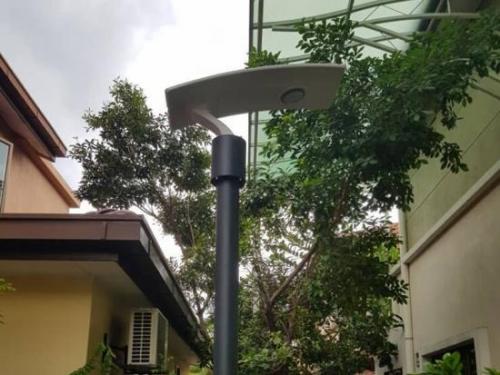

Integrated solar street light
20W 30W 40W 60W 80W 100W 120W Power LED Solar Street Light

LED Solar Street Light,simple design,practical,easy installation,powered by solar, saving energy and environmental friendly.

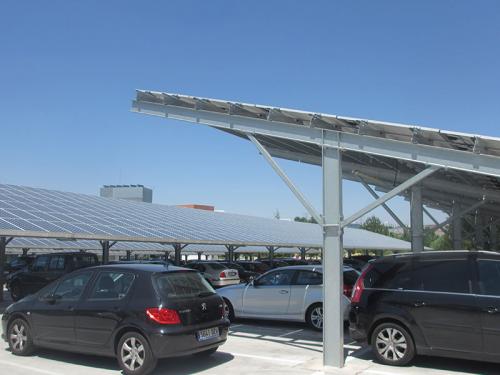

pv Carport mounting structures
High quality Solar Canopy Carport Mounting System Steel Frame

Ray Solar Carport PV Mounting System product introduction specializes in Solar First carport mounting manufacturing and designing to meet the needs of various pole mount installation.

Home Use Tilted Single Axis Solar Tracker
Single axis solar tracking system with tilted modules

Ray Solar tilt single-axis solar trackers are designed for flat, mountainous terrain at mid to high latitudes (more suitable for south-facing mountains), increasing power output by approximately 20-28% over fixed tilt systems.

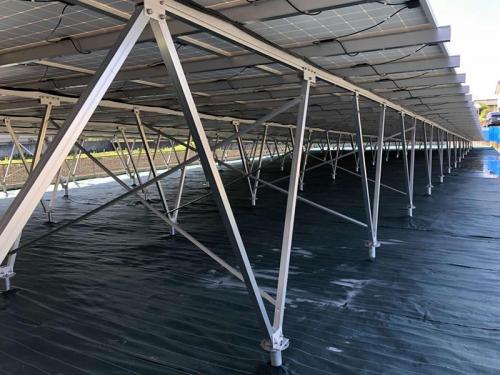

Solar mounting brackets
