Solar Tracker

/

Tilted Single Axis Solar Tracker

/Single axis solar tracking system with tilted modules

Single axis solar tracking system with tilted modules

Ray Solar tilt single-axis solar trackers are designed for flat, mountainous terrain at mid to high latitudes (more suitable for south-facing mountains), increasing power output by approximately 20-28% over fixed tilt systems.

  • Item NO.:

    SF-SAT02
  • Payment:

    T/T L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    20days
  • Product Detail

Tilt Single Axis Solar Tracker


This single axis inclined solar tracker can be used freely on steep slopes as well as in many complex installation conditions such as hills, river beaches, deserts and gobi deserts. It could increase power generation by more than 20-28% compared to the fixed mounting system.

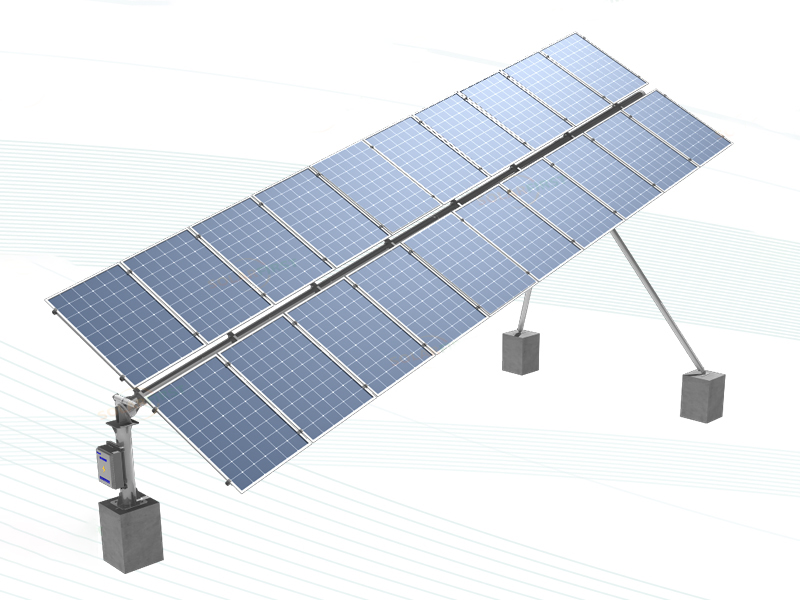

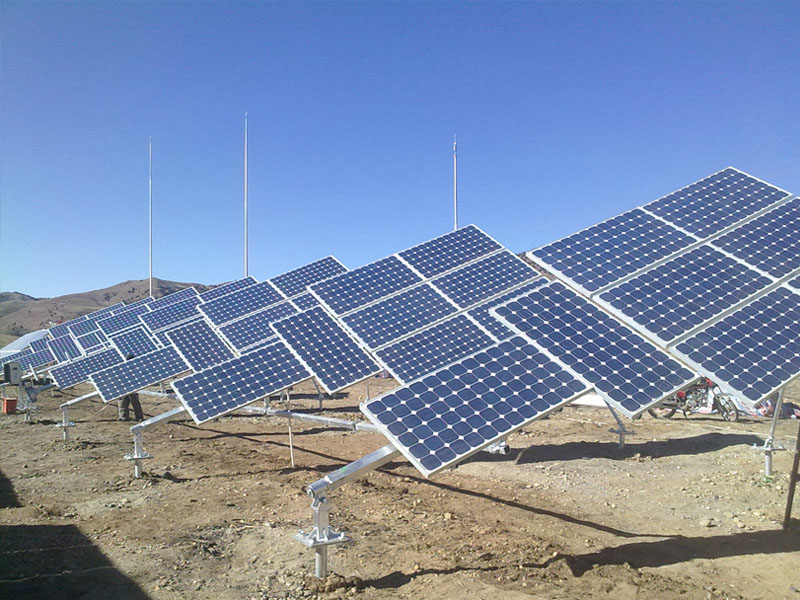

single axis inclined solar tracker

Applicable Areas

Mid-high latitude flat terrain, mountainous terrain (more suitable for southward mountain areas)


Product Features

1.Wide range of applications

2.Lower cost compared with non-linked tilt tracker and more power increase

3.Modular structure, flexible in system capacity configuration

4.Point-to-point and real-time monitoring of each tracker

5. Plug and play, much easier in installation and maintenance


 T  Technical Specifications






Technical Data of System

Type

Tilted single axis (non-linked)

Single array capacity(DC)

2KW~7KW

Module number (pcs)

10/12/14/16/18/20

System max. voltage

1000V/1500V

Tracking range

±45°

Increased power output(compared with fixed tilt)

10%~25%









Mechanical Parameters

Drive type

Slew drive

Structure material

HDG

E-W slope adaptability

≤15°

S-N slope adaptability

≤15°

System dimensions (㎡)

20-44

Foundation type

Concrete footing or ramming pile

Max. Wind resistance

40m/s(customizable)

Safe working wind load

18m/s












Electrical Parameters

Power supply

110V/220V/380VAC

Motor

29W  24VDC

Frequency

50/60Hz

Drive power

100~200W

Power consumption

≤0.3kWh/day(≤3‰)

Control mode

Closed loop time control

Night return

yes

Back tracking

yes

Working temp. range

—25℃~65℃

Protection class

IP65

Communication protocol

RS485/Modbus

Foundation Tolerance

Adaptive Slope

N-S high adaptability, E-W 10°

N-S Tolerance

±50mm

E-W Tolerance

±50mm

Elevation Tolerance

±50mm

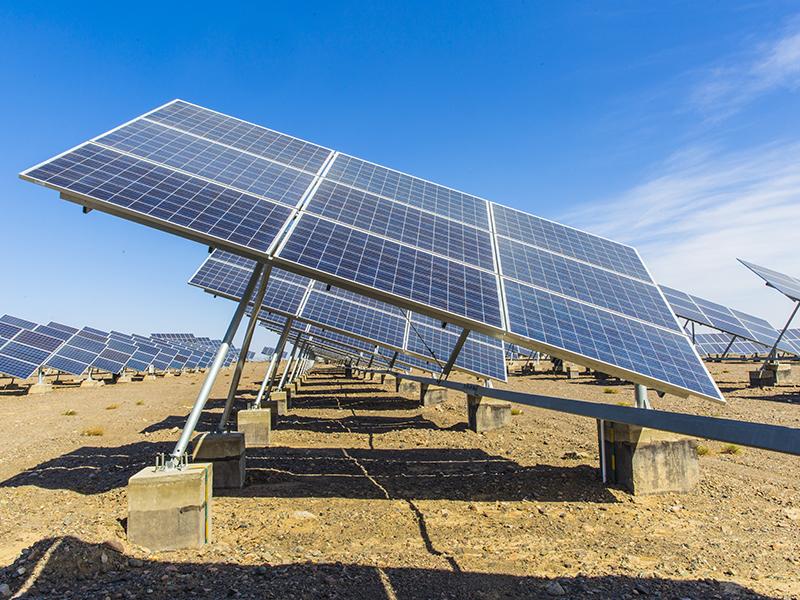

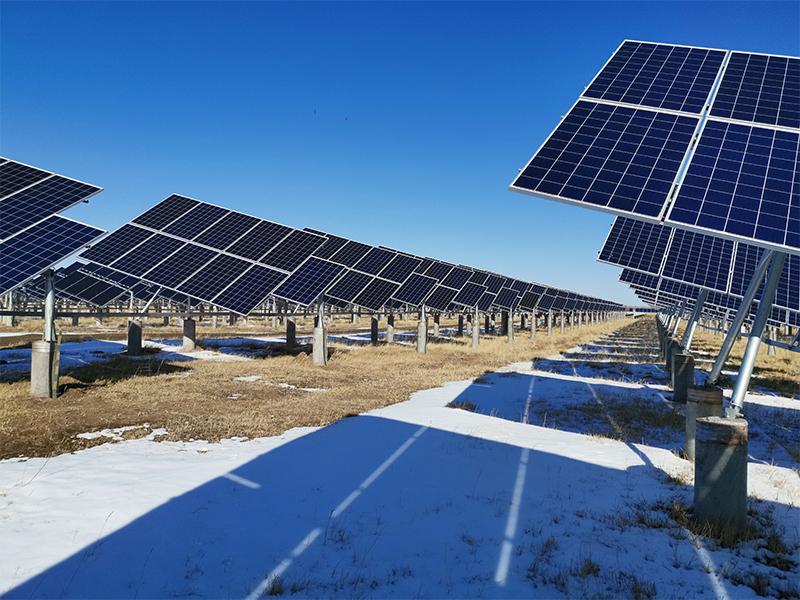

       Tilted single axis solar tracker
