Item NO.:
RS-GL-15WPayment:
L/C, T/T, D/P, Western Union, PaypalProduct Origin:
ChinaColor:
NormalShipping Port:
Xiamen,ChinaLead Time：
20-30 working days
General Advantages
1.All in one design - perfect combination of solar power, LED ,LiFePO4 battery, motion sensor, lighting sensor and timing control technology.
2.Easy installation and less labor costs- integrated design without cabling;- can be installed on wood, bamboo, iron post. Or mounted on wall i.e vertical surface, eg. Outside of house, garage- rain-proof, rust-proof structure, maintenance free for permanent installation.
3.Long life span -solar garden light using high power capacity and long life LiFePO4 battery. High-temperature characteristic-this type of battery has good stability and great high-temperature characteristic.
Save energy--integrates infrared sensor to save power and lighting performance. When there is no people working at saving mode, when motion sensed working at bright mode.
|
Outdoor waterproof solar garden light specifications |
||||
|
Model |
SF-GL-5W |
SF-GL-7W |
SF-GL-15W |
|
|
Solar Panle |
Max Power |
18W | 27W | 54W |
|
Solar cell |
Semi-flexible Monocrystalline Silicon Solar Panel |
|||
|
Life time |
25 years |
|||
|
LED Light |
Power |
5W |
7W |
15W |
|
|
|
|||
|
Life time |
50,000 hours |
|||
|
Battery |
Capacity |
36Ah 12V |
54Ah 12V |
72Ah 12V |
|
Type |
Lithium battery |
|||
|
Life time |
5-8 years |
|||
|
Charging |
By sun |
6-10 hours effective sunlight |
||
|
Work temp |
Range(℃) |
-40℃ - +70℃ |
||
|
Colour temp |
Range(k) |
4200K-6500K |
||
|
Installation Height |
Range (m) |
6-8m |
8-10m |
10-15m |
|
Work mode |
Light on at dusk, light off at dawn auto.
Motion sensor mode, Dimming mode,Time control mode for choice.
|
|||
|
Material |
Hot Dip galvanizing | |||
|
Certificate |
CE / ROHS / IP65 | |||

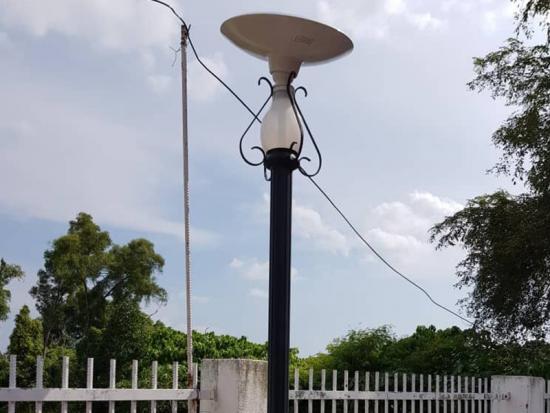

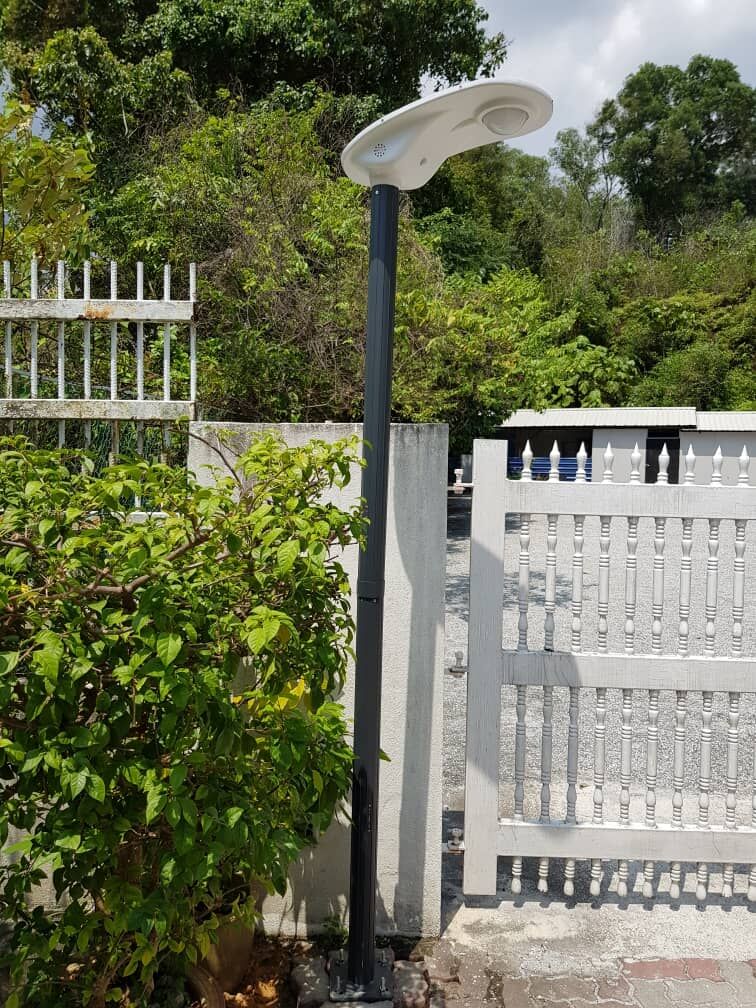

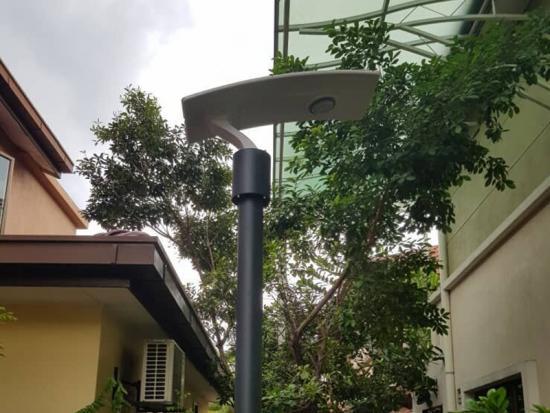

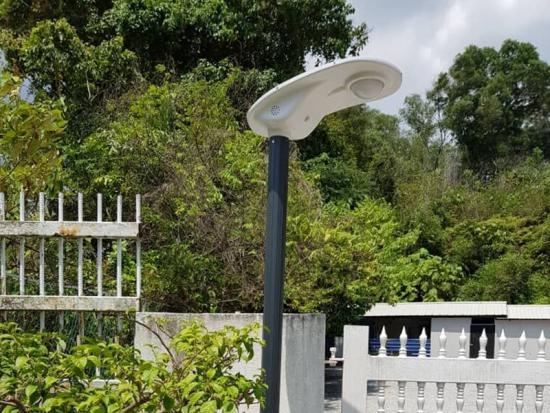

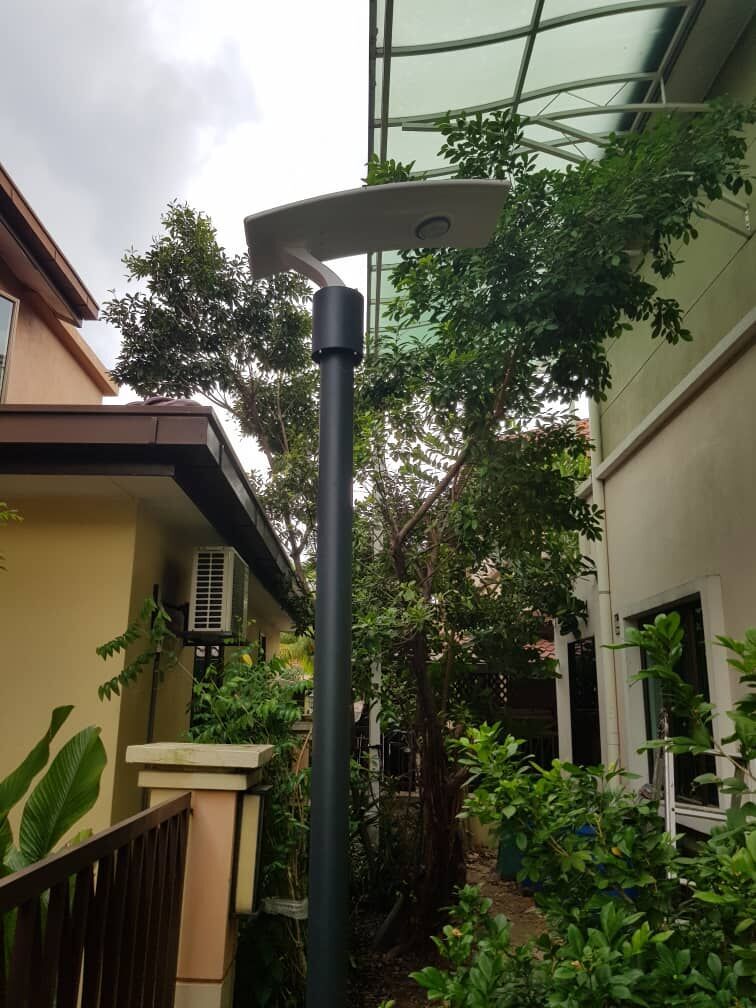

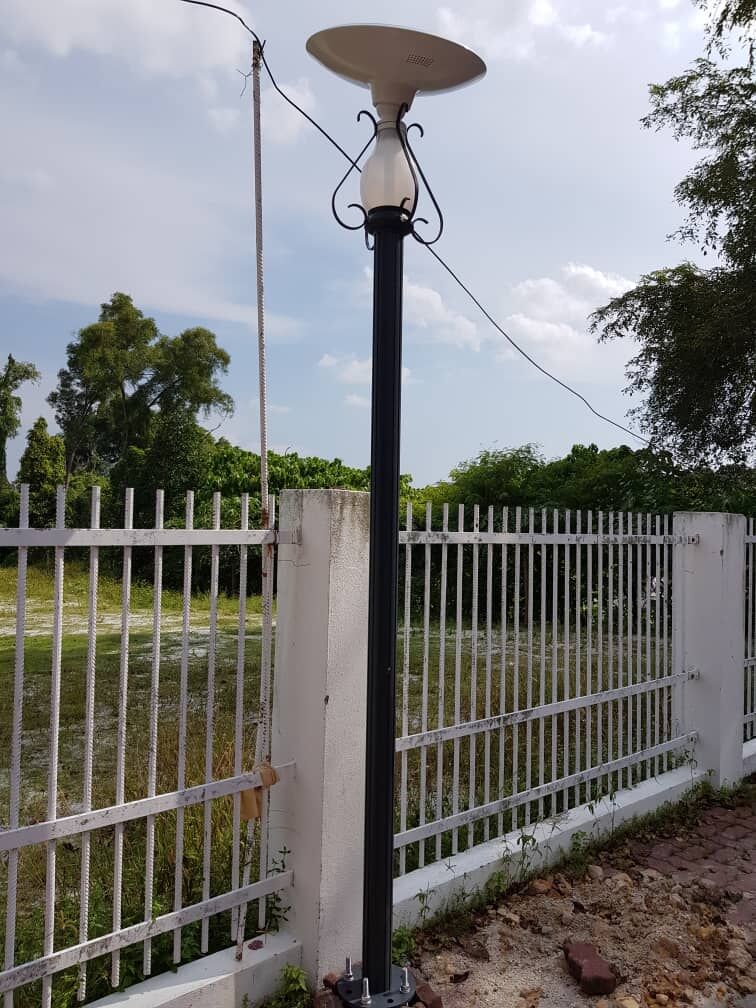

Product Show
leave a messageXiamen Ray Solar Technology Co., Ltd. , driven by its mission "Green Energy", is a global leading manufacturer of solar racking,tracking systems,floating and carport systems, providing one-stop reliable solar mounting system solutions with 5GW sold over 80 countries and regions worldwide.
The horizontal single-axis tracking system is mainly applied in the middle and low latitudes, and a pair of horizontal single-axis strings are connected by a set of driving devices to achieve synchronous tracking of multiple strings.
L Feet Brackets For Tin Roof Solar Mounting, veay easy installation.
Ray Solar Carport Waterproof Mounting System offers a flexible, simple and affordable solution for solar mounting system, Our waterproof carports can truly be structurally waterproof and cost-effective. Generally, it is the most economical to put two cars in one carport.
Solar Ground Mounting System is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
The horizontal Single Axis Tracking System uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance microcontroller (DSP core), making the system accurate and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.
Ray Solar tilt single-axis solar trackers are designed for flat, mountainous terrain at mid to high latitudes (more suitable for south-facing mountains), increasing power output by approximately 20-28% over fixed tilt systems.
LED Solar Street Light,simple design,practical,easy installation,powered by solar, saving energy and environmental friendly.
All in one Integrated Solar Street Light, all-in-one design, easy to install. Outdoor light is waterproof.
