Solar Tracker

/

Tilted Single Axis Solar Tracker

/Linkage row tilted single-axis solar tracking system

Linkage row tilted single-axis solar tracking system

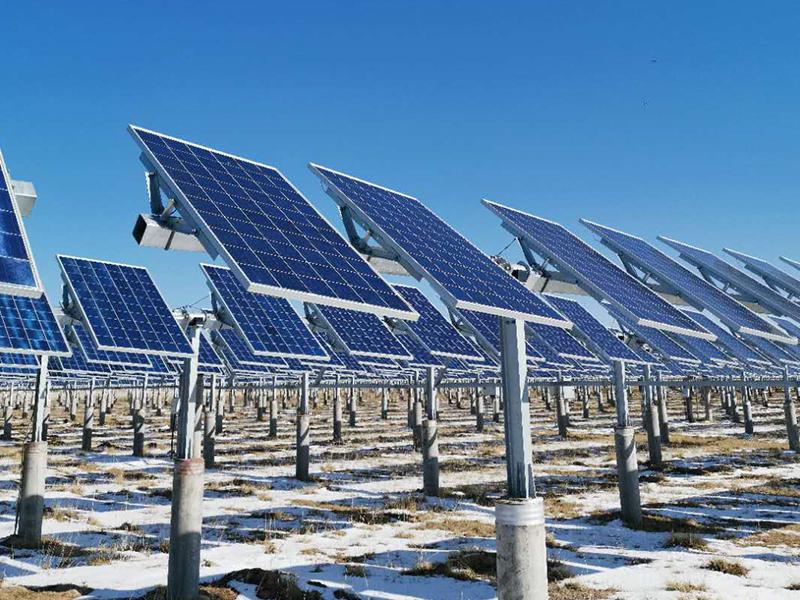

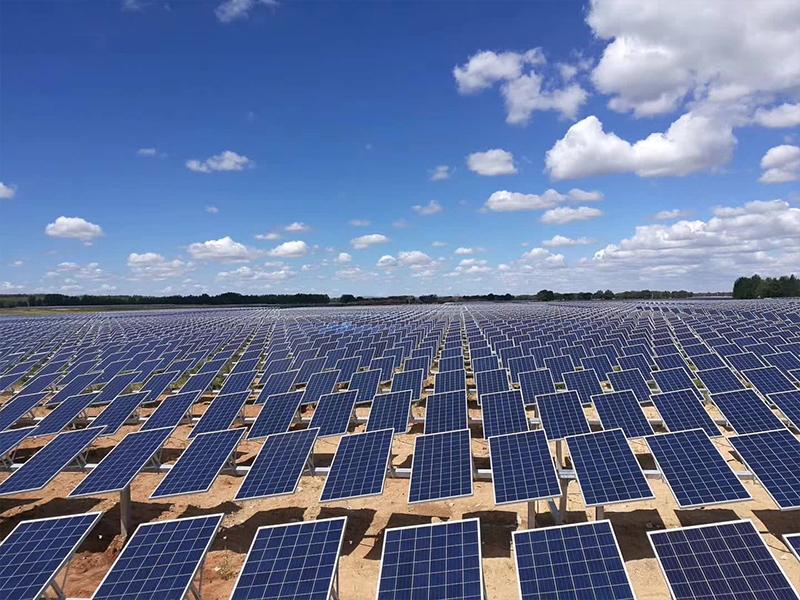

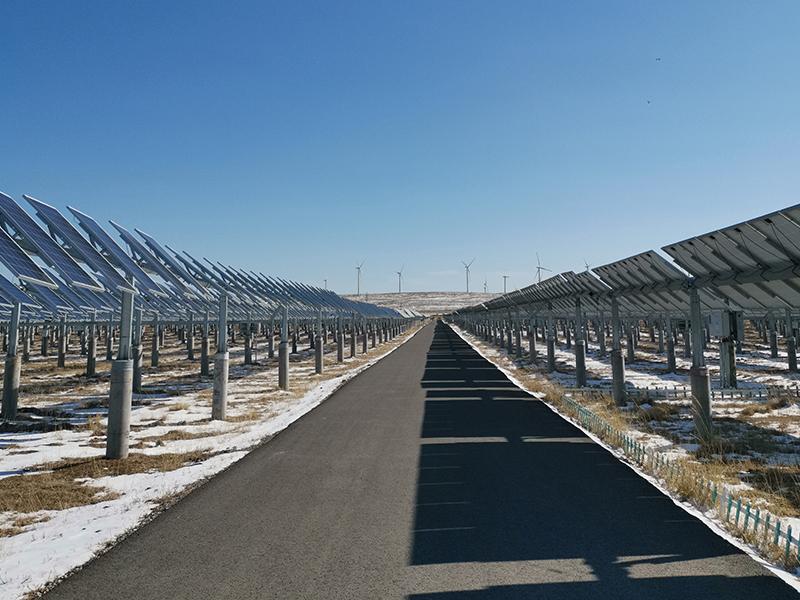

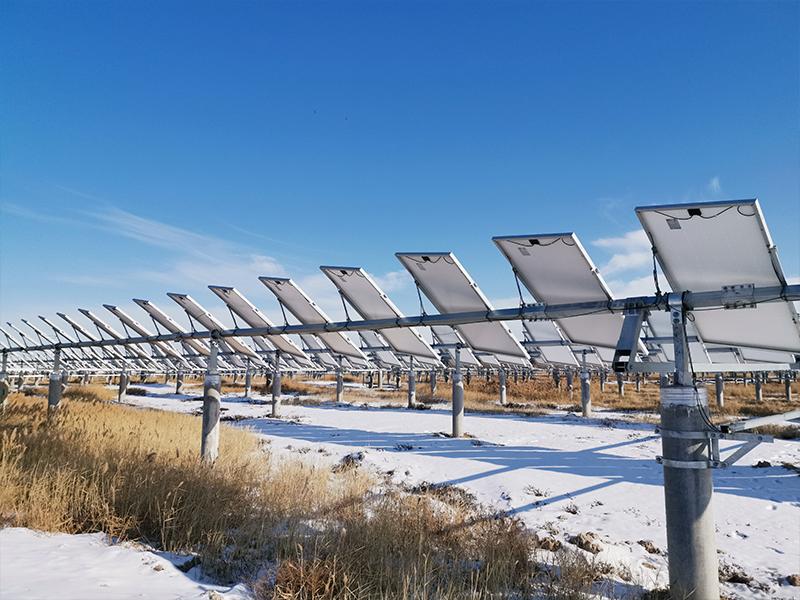

Linkage Tilted Single Axis Tracker is a new production manufactured by Ray Solar. It can make each rotating support achieve a group movement through the crank, despite the rough places like hills, river rapids, desert, Gobi, etc.

  • Item NO.:

    RS-SAT02L
  • Payment:

    T/T L/C
  • Product Origin:

    China
  • Color:

    Normal
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    30 days
  • Product Detail

Linkage Tilted Single-Axis Tracker


Linkage tilted single-axis tracker is a new production manufactured by Ray Solar.

You can make each swivel mount achieve the group movement through the crank, despite the rugged places like the hills, river rapids, desert, Gobi, etc. After using the connecting inclined single axis tracker, 20% -25% of the extra power generated will be improved compared to the fixed system.


Applicable Areas

Mid-high latitude flat terrain, mountainous terrain (more suitable for southward mountain areas)


Product Features

1.Wide range of applications

2.Lower cost compared with non-linked tilt tracker and more power increase

3.Modular structure, flexible in system capacity configuration

4.Point-to-point and real-time monitoring of each tracker

5.Plug and play, much easier in installation and maintenance


Technical Specifications






Technical Data of System

Type

Linkage Row Tilted Single Axis

Single array capacity(DC)

30KW~100KW

Module number (pcs)

20-50

System max. voltage

1000V/1500V

Tracking range

±45°

Increased power output(compared with fixed tilt)

10%~25%









Mechanical Parameters

Drive type

Slew drive

Structure material

HDG

E-W slope adaptability

≤15°

S-N slope adaptability

≤15°

System dimensions (㎡)

20-44

Foundation type

Concrete footing or ramming pile

Max. Wind resistance

40m/s(customizable)

Safe working wind load

18m/s











Electrical Parameters

Power supply

110V/220V/380VAC

Motor

24VDC

Frequency

50/60Hz

Drive power

100~200W

Power consumption

≤0.3kWh/day(≤3‰)

Control mode

Closed loop time control

Night return

yes

Back tracking

yes

Working temp. range

—25℃~65℃

Protection class

IP65

Communication protocol

RS485/Modbus


Foundation Tolerance

Adaptive Slope

N-S high adaptability, E-W 10°

N-S Tolerance

±50mm

E-W Tolerance

±50mm

Elevation Tolerance

±50mm
