Solar PV Carport Mounting System

Steel Solar PV Ground Carports offers a fexible,simple and affordable solution for solar mounting system.solar carports utilize exisiting parking areas to generate renewable power and provide shaded or covered parking for autos,electric charges,on gird mw solar systems.
  • Item NO.:

    RS-CM-003
  • Payment:

    L/C, D/A, D/P, T/T, Western Union
  • Product Origin:

    Xiamen China
  • Shipping Port:

    Xiamen
  • Lead Time:

    2 weeks
  • Product Detail

Product Description:

Solar PV Steel Carport mounting system

1. Enables easy,fast and cost-effective installation.
2. Flexible post spacing withstands different wind&snow loads.
3. High quality material in galvanized steel and SUS 304.
4. Highly corrosion resistant surface treatment.
5. Screws and nuts go with every componts needed.
6. Fasteners and rail nut fully configured to save extra parts purchasing.
7. Mechanical calculation and reliability tested to ensure highset product quality.
8. 12-25 years system and structural guarantee.

Function:

1.Double functions,Provide shade ,generated the solar power and protect your cars;
2.More types as your requirements,according to the function,we have simplify carport ans waterproof
canopy.According the figure,we have double pole ,semi cantilever,full cantilever, customized design
available.

Type: Solar carport mounting system solution
Installation site: According to your requirements
Material: Aluminum Alloy
Fasten material: Aluminum , SUS304, galvanized Steel
Survival Wind Speed: < 60m/s
Design Snow load: Up to 1.4KN/ Square meters
Solar panel type: Framed or Frameless
Panel Orientation: Transverse or vertical
Design Standard: CE;IOS9001;SGS
Quality warranty: 12-25 years
Duration: More than 20 years
Delivery time: 7-15 days
Package: Standard Packing

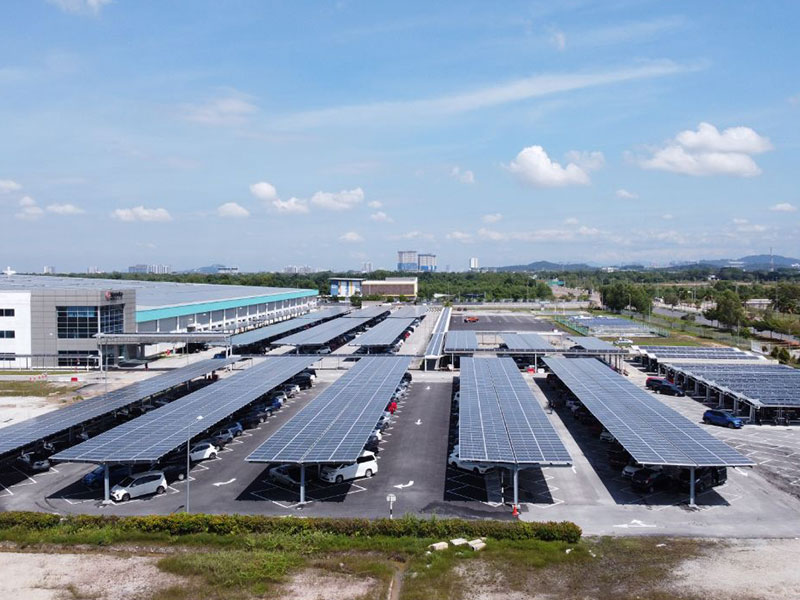

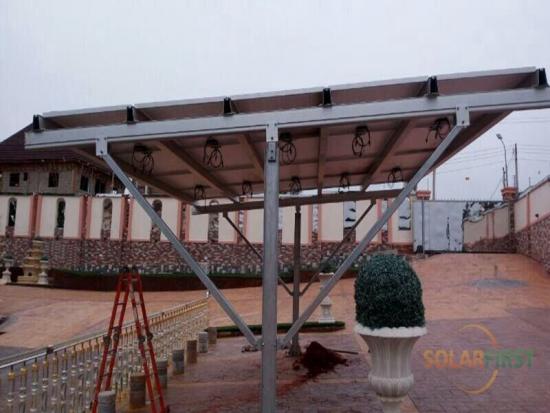

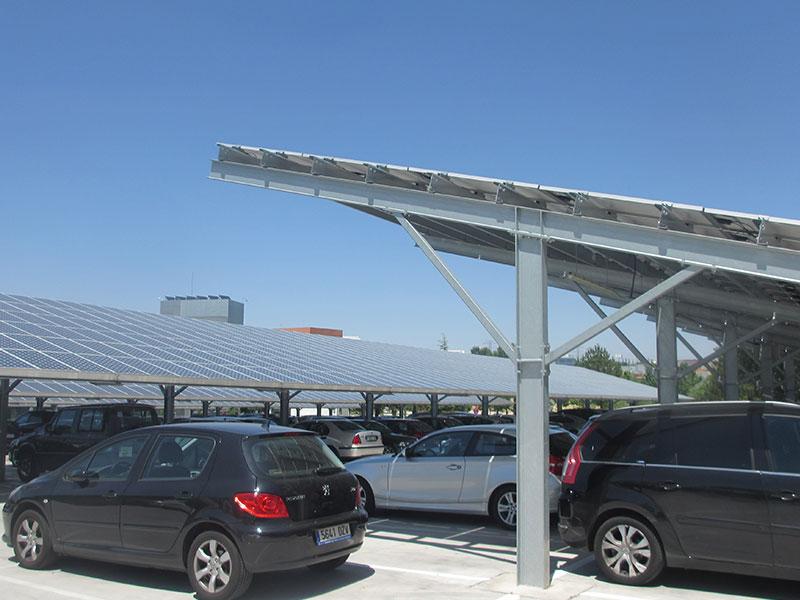

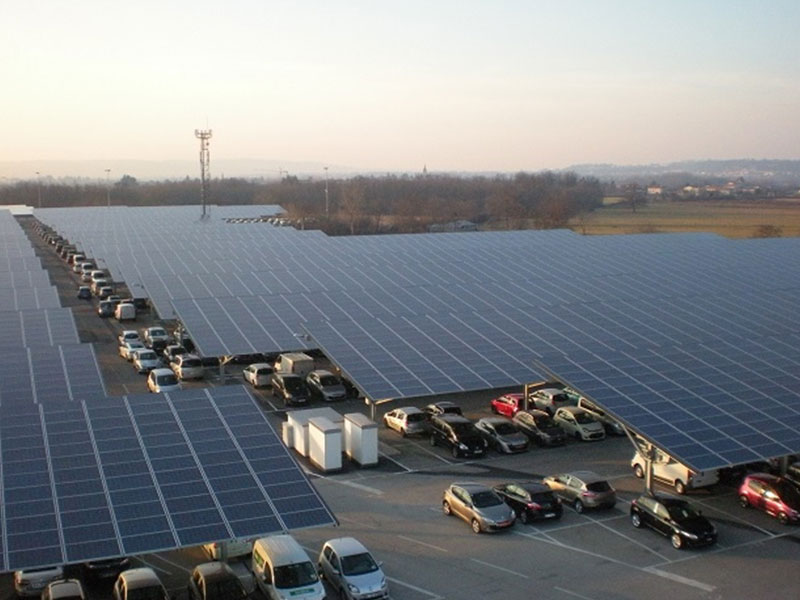

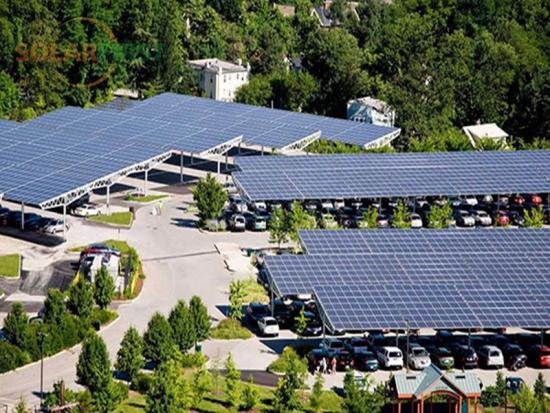

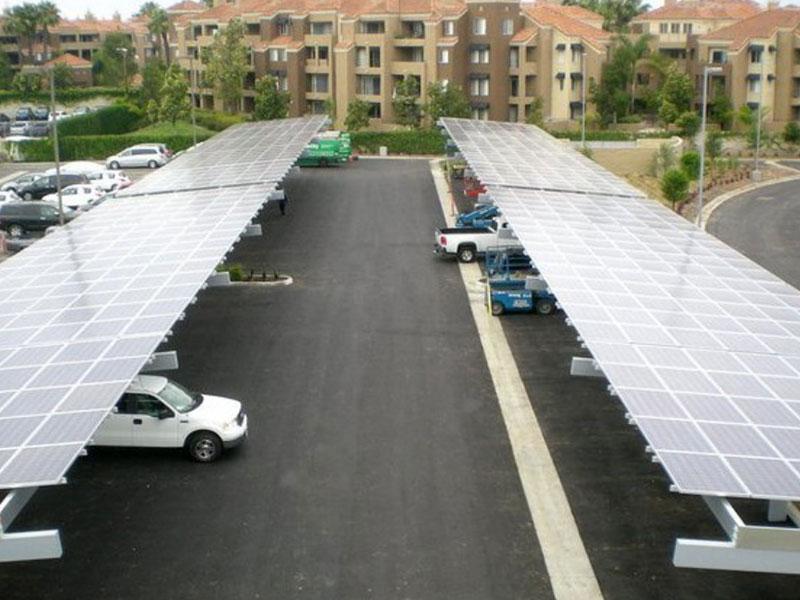

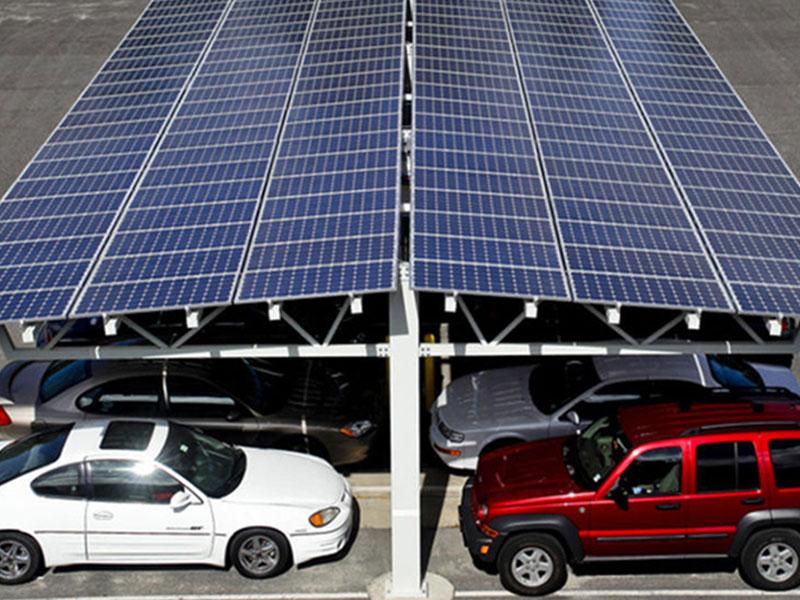

Photo Show:

Solar PV Carport Mounting System

Solar PV Carport Mounting System

Solar PV Carport Mounting System
