Solar Tracker

/

Horizontal Single Axis Solar Tracker

/Horizontal flat single-axis solar tracking system

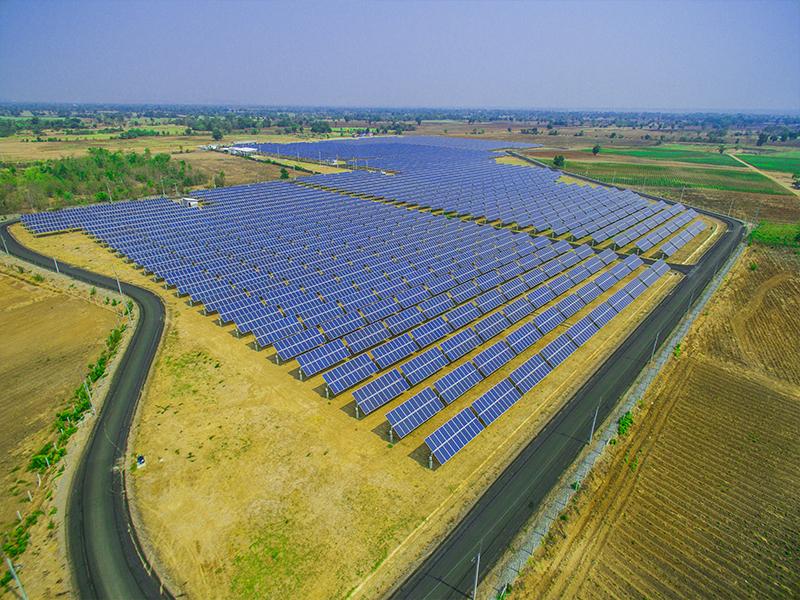

Horizontal flat single-axis solar tracking system

The horizontal single-axis tracking system is mainly applied in the middle and low latitudes, and a pair of horizontal single-axis strings are connected by a set of driving devices to achieve synchronous tracking of multiple strings.
  • Item NO.:

    SF-SAT01
  • Payment:

    T/T L/C
  • Product Origin:

    China
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    20days
  • Product Detail

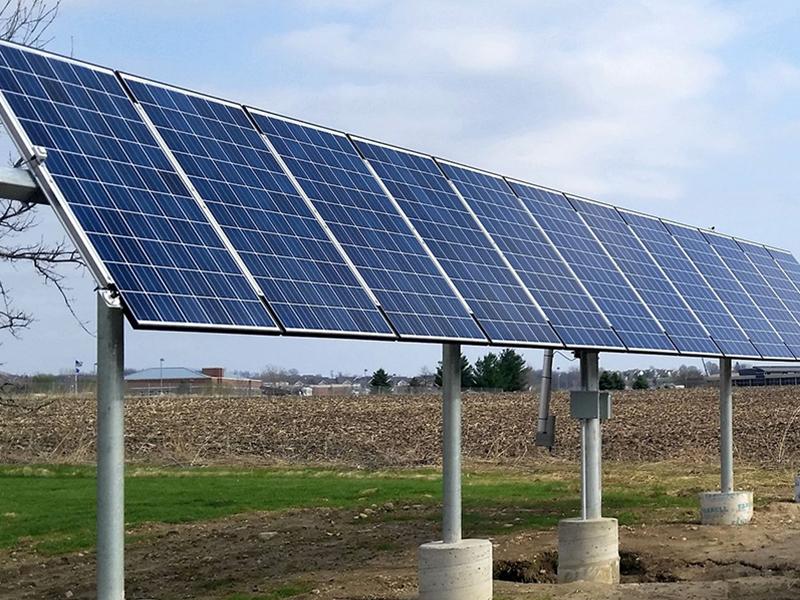

Horizontal Single-Axis Tracking System


Ray Solar horizontal single-axis tracking system which is mainly applied in the mid and low latitude areas, connect a couple ofhorizontal single axisstrings through a set of driving device to achieve synchronous tracking of multiple strings. Linkage array can be 6 strings, 8 strings, 10 strings and 12 strings with module mounting capacity from 20kWp to 60kWp. Annual additional electricity generation is up to 15%~23% in comparison to the fixed bracket. Applicable in different terrain, like desert, flat, fish ponds on the slope land etc.




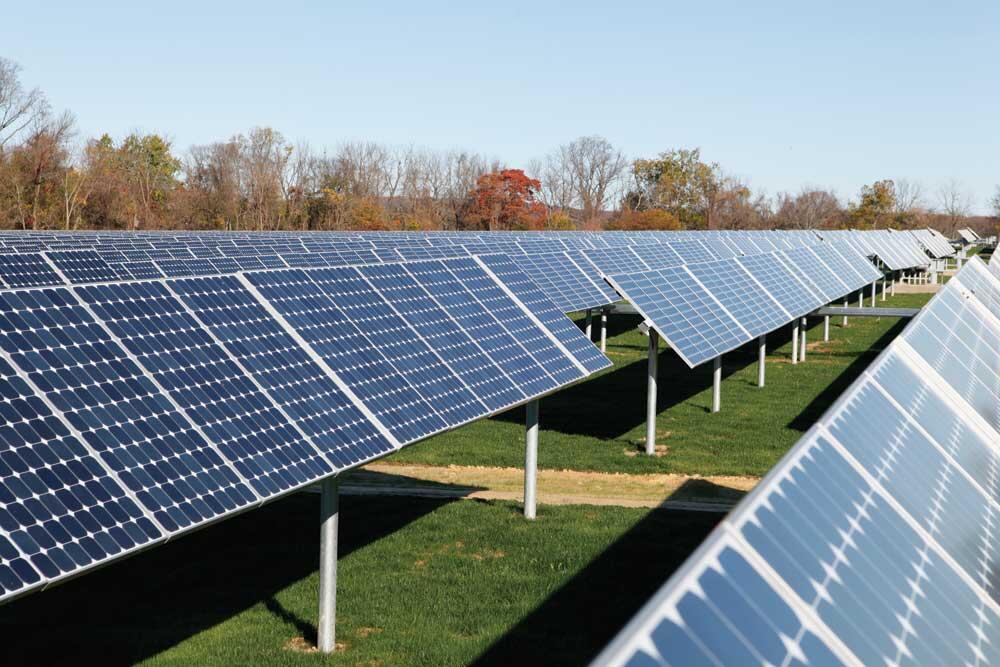

horizontal single-axis tracking system

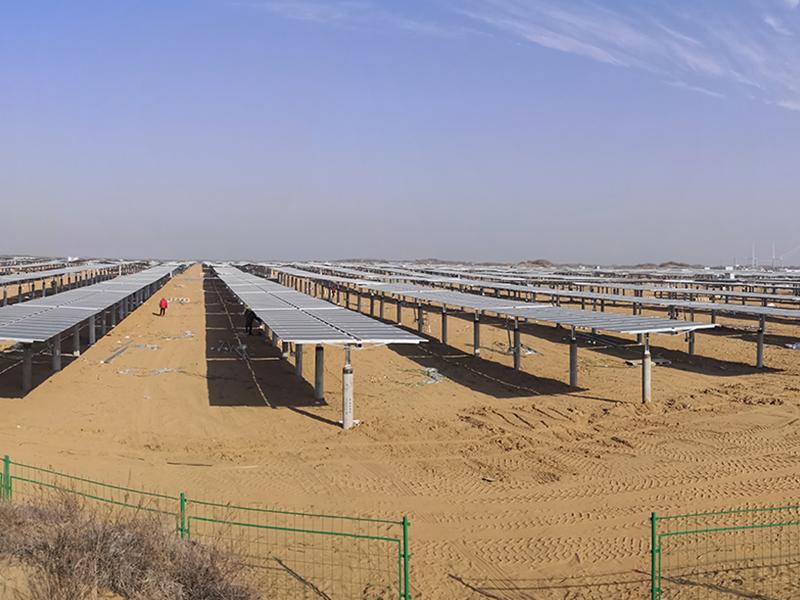

Applicable Areas

1. Mid-high latitude flat land, mountainous terrain

2. Suitable for all types of modules, C-SI, A-SI, bi-facial modules



Features & Advantages

1. Single unit capacity ranging from 2-7KW.

2. Higher terrain flexibility, adaptive slope N-S direction 5°, E-W 12°.

3. Higher reliability control& drive system, Siemens PLC control and verified components ensure the reliability of controller, one-click operating design, fewer number of control and drive units, fewer piles, allow for simple installation,operation and maintenance.

4. Full automatic tracking, high tracking accuracy of less than 0.5°,additional electric power output by 15-25%.


Technical Specifications








Technical Data of System

Type

Horizontal single axis(non-linked)

Single array capacity(DC)

2KW~7KW

Module number (pcs)

10/12/14/16/18/20

System max. voltage

1000V/1500V

Tracking range

±45°

Increased power output(compared with fixed tilt)

10%~25%









Mechanical Parameters

Drive type

Slew drive

Structure material

HDG

E-W slope adaptability

≤15°

S-N slope adaptability

≤15°

System dimensions (㎡)

20-44

Foundation type

Concrete footing or ramming pile

Max. Wind resistance

40m/s(customizable)

Safe working wind load

18m/s











Electrical Parameters

Power supply

110V/220V/380VAC

Motor

29W  24VDC

Frequency

50/60Hz

Drive power

100~200W

Power consumption

≤0.3kWh/day(≤3‰)

Control mode

Closed loop time control

Night return

yes

Back tracking

yes

Working temp. range

—25℃~65℃

Protectionclass

IP65

Communication protocol

RS485/Modbus

Foundation Tolerance

Adaptive Slope

N-S high adaptability, E-W 10°

N-S Tolerance

±50mm

E-W Tolerance

±50mm

Elevation Tolerance

±50mm


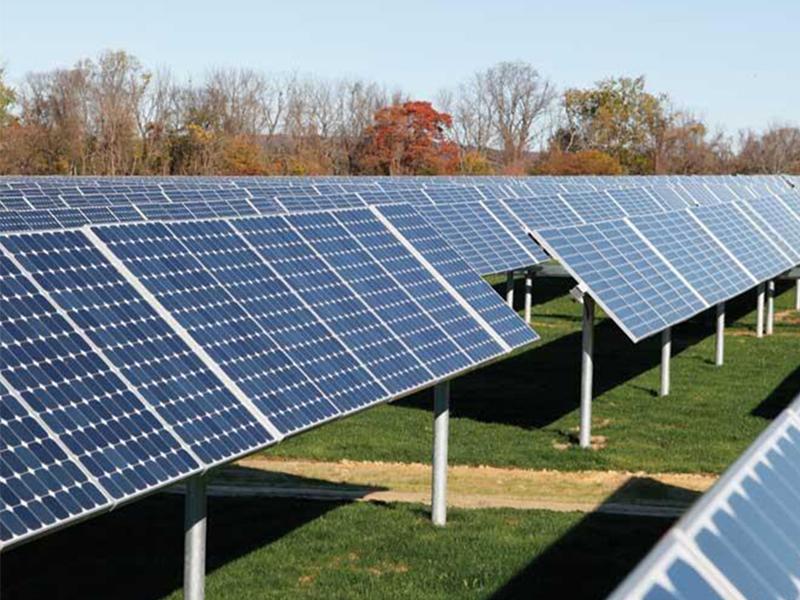

Picture sho

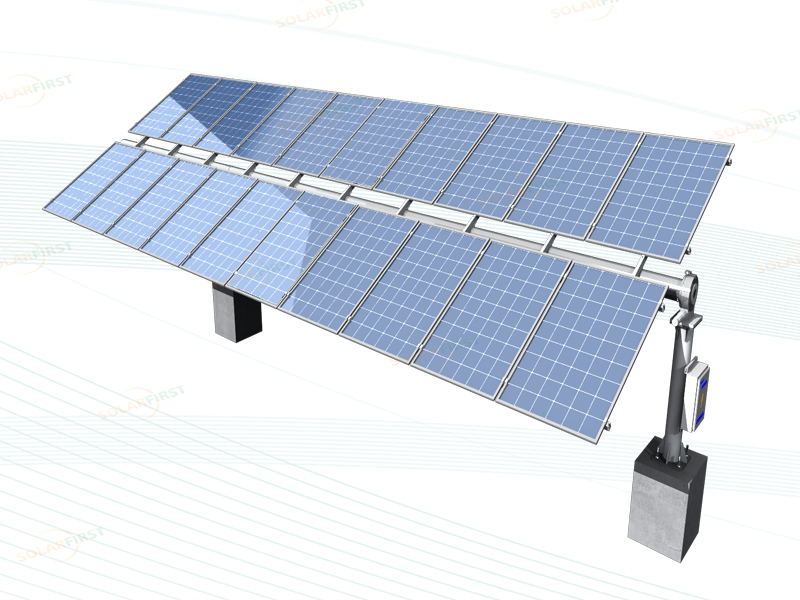

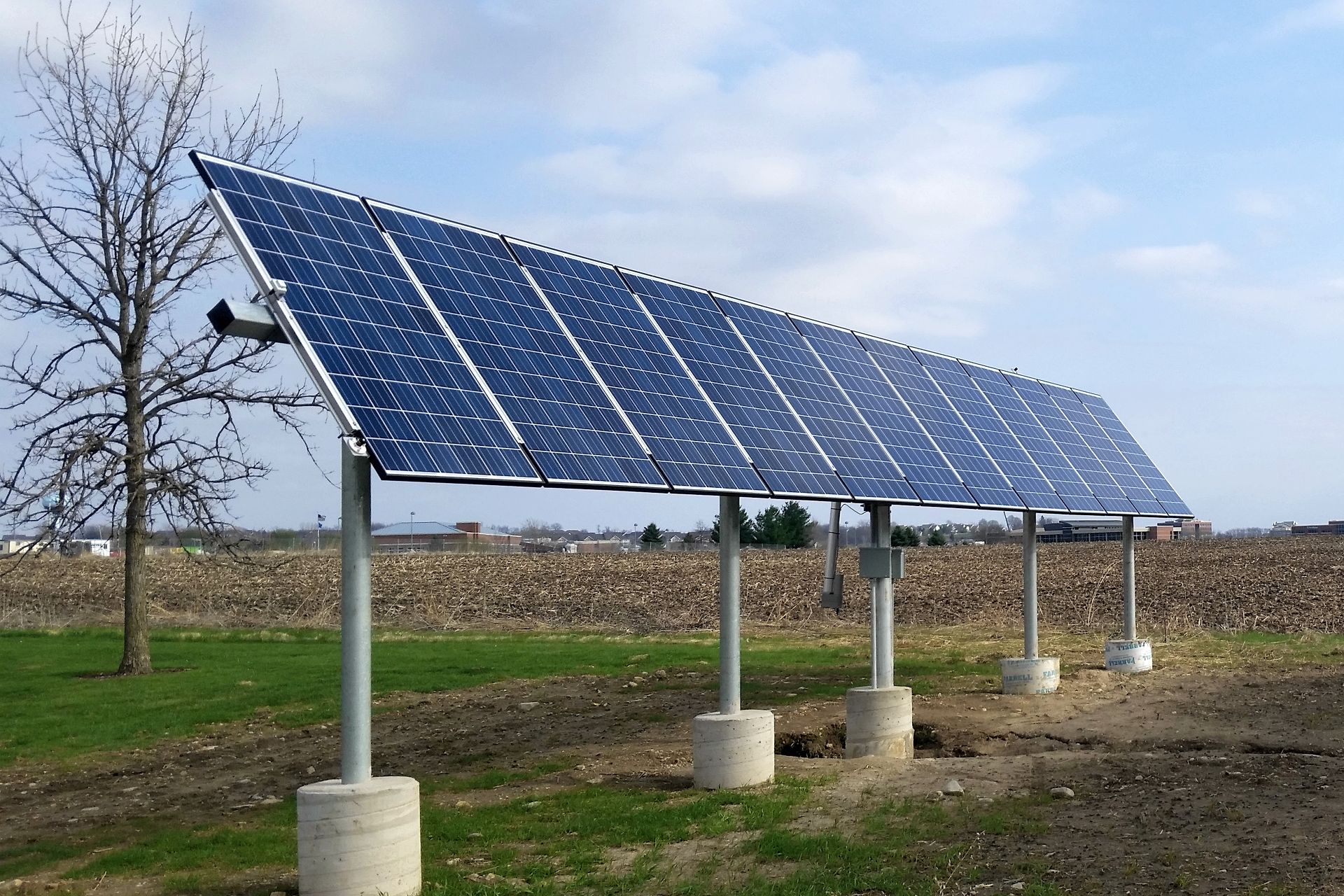

Horizontal single-axis tracking systemFlat single-axis tracking system
