High quality Solar Canopy Carport Mounting System Steel Frame

Ray Solar Carport PV Mounting System product introduction specializes in Solar First carport mounting manufacturing and designing to meet the needs of various pole mount installation.
  • Item NO.:

    SF-CM-005
  • Payment:

    L/C, T/T, D/P, Western Union, Paypal
  • Product Origin:

    Fujian, China
  • Color:

    Normal
  • Shipping Port:

    Xiamen
  • Lead Time:

    within 15-30 working days
  • Product Detail

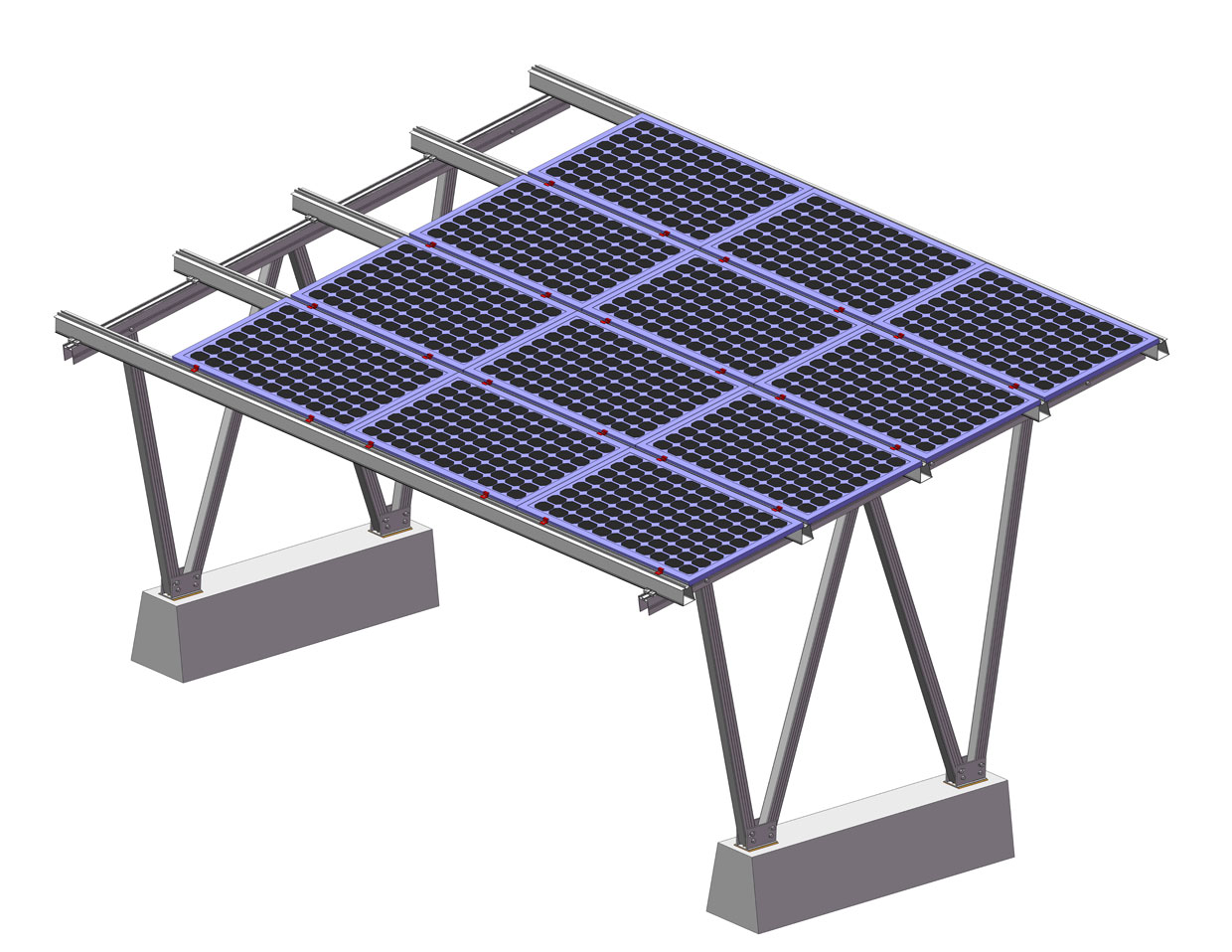

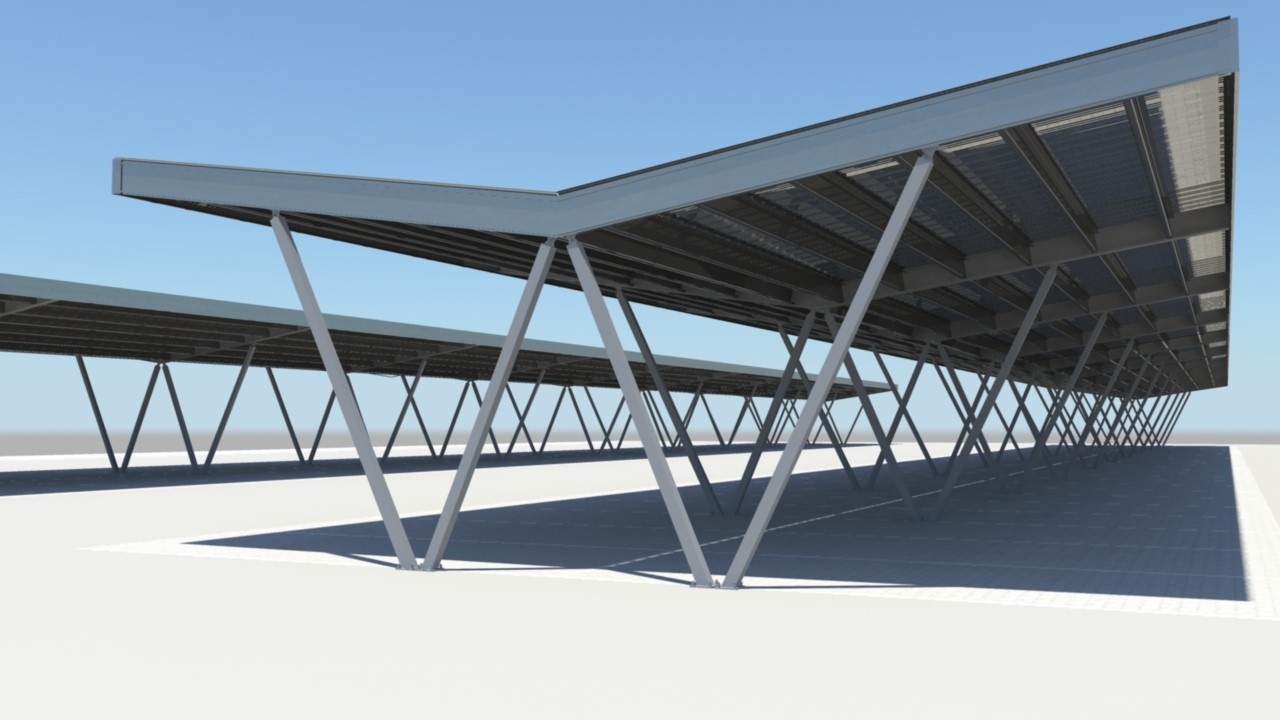

W Shape Design of Solar Carport Mounting Bracket Systems

Carport mounting bracket system product introduction specializes in Solar First Carport Mounting manufacturing and designing to meet the needs of various pole mount installation. Solar First carport mounting system is applicable to be the PV array system on the open field.


Specifications for PV Carport Mounting Structures

Product Name

Carport Mounting Bracket System

Brand Name

Ray Solar

Installation Site

Open Field/ Ground / Earth / Concrete Ground for Carport/Car parking

Material

Steel Q235 & Aluminum 6005-T5

Color

Silver Or Customized

Wind Speed

60m/s

Snow Load

1.4KN/m2

Module Angle

10-60 Degrees According to Your Requirement or Latitude

Standard

AS/NZS 1170; TUV

Warranty

10 Years

Service Life

25 Years

Components Parts

Leg Cap; Front / Rear Leg; Fix Ring; Cross Pipe; U Connector;

Rail; Mid Clamp; End Clamp; Enforcement Pipe

Advantages

Easy Installation; Safety And Reliability; 10 -Year Warranty

Packing

In Pallet, Carton Box Or As Your Request

Delivery Time

3Days For Sample, Others Depend On The Quanlity.


Advantages of Solar First Carport Mounting System

1.Easy Installation

Pre-assembly mount system with professional design enable to save your time and money on site.

Quick and easy installation is promised due to our patented Cross-module, rail and roof hooks.



 2. High Compatibility

Compatible with various of solar panel in the market.



3. Innovative Design

With mechanical optimization and high density design, to minimize loading space, high level of corrosion resistance treatment.



4. Strictly Quality Control

 From selection of raw materials, procurement and production process, Solar First has a strict control process to ensure the ground mount structural strength and to optimize service life of system and Strict QC offers more reliable solutions.


Design Details

Solar PV Carport with Aluminium Frame Aluminum Carport Mounting Structure

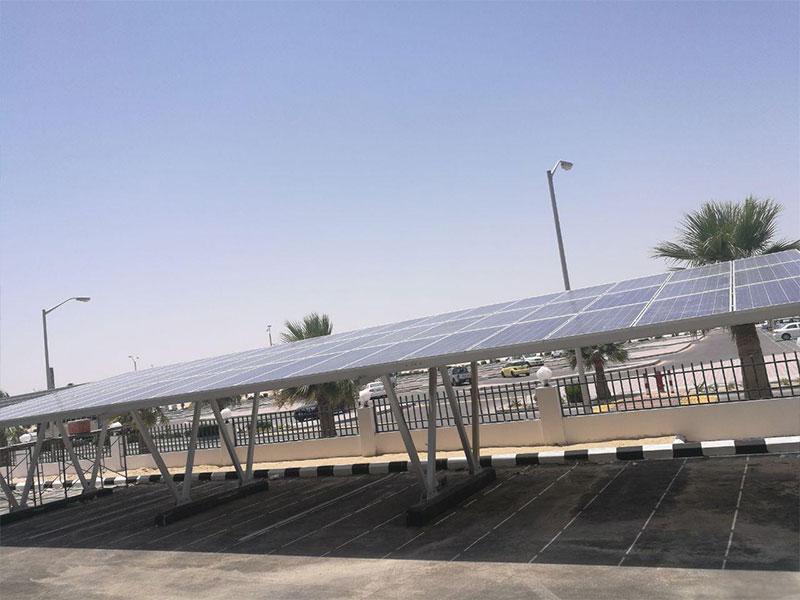

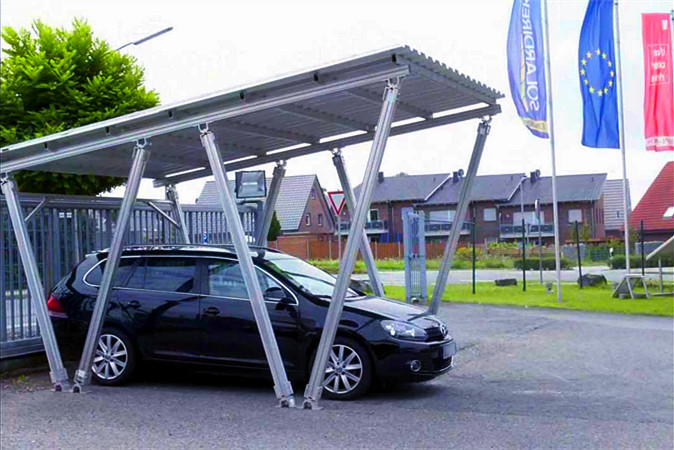

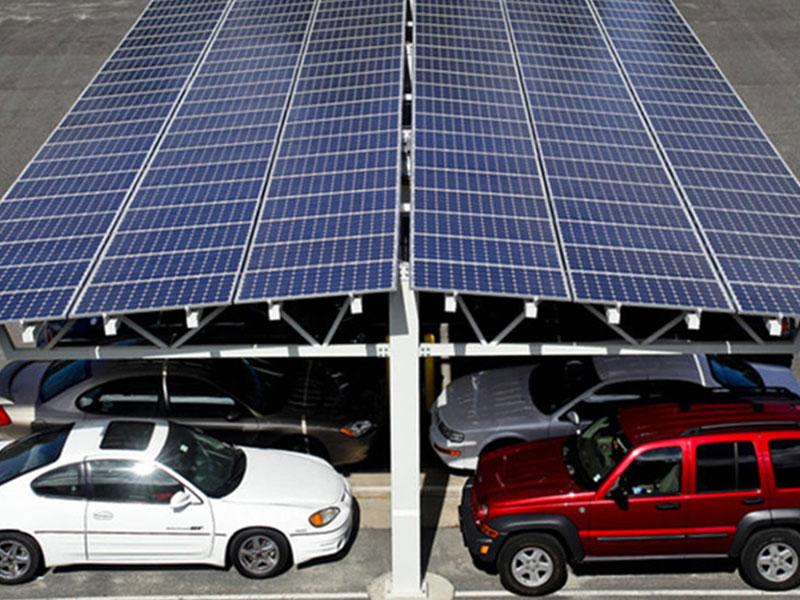

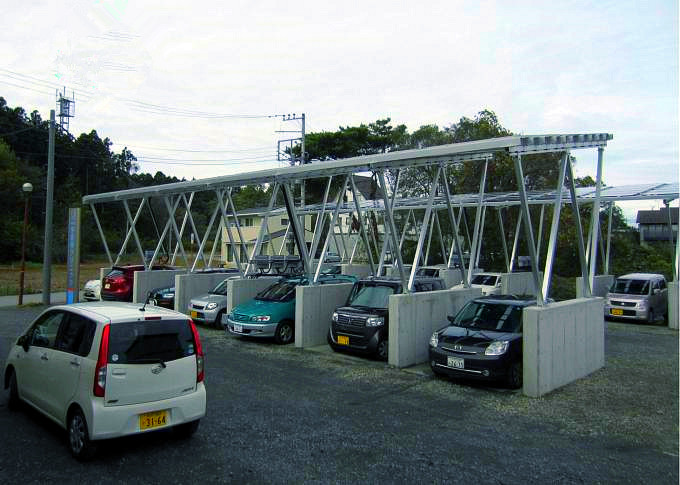

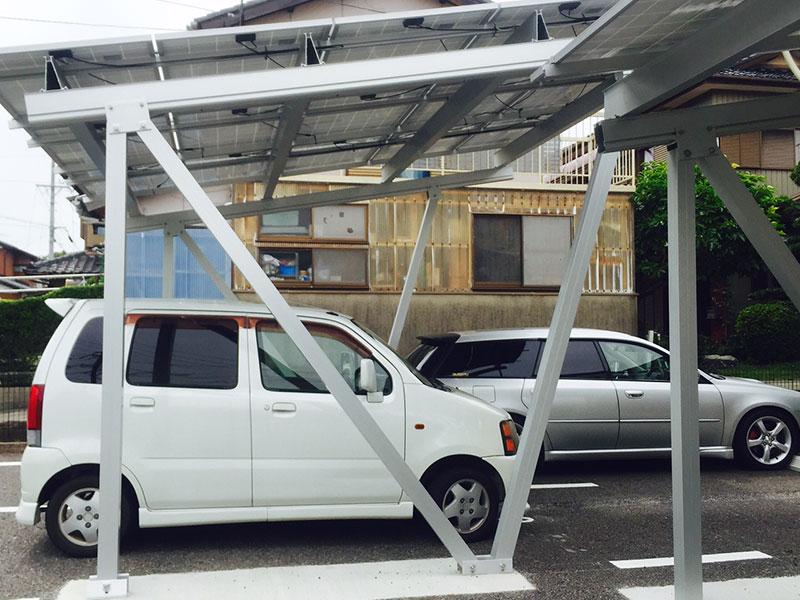

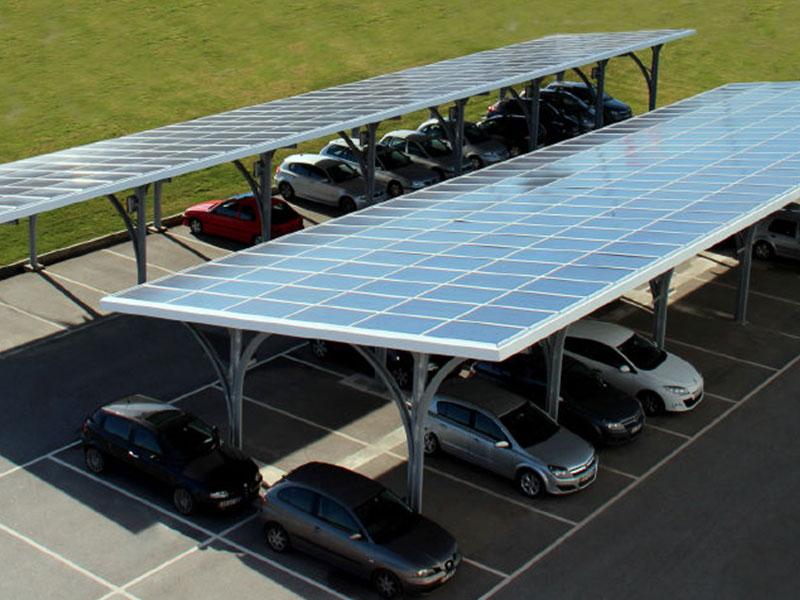

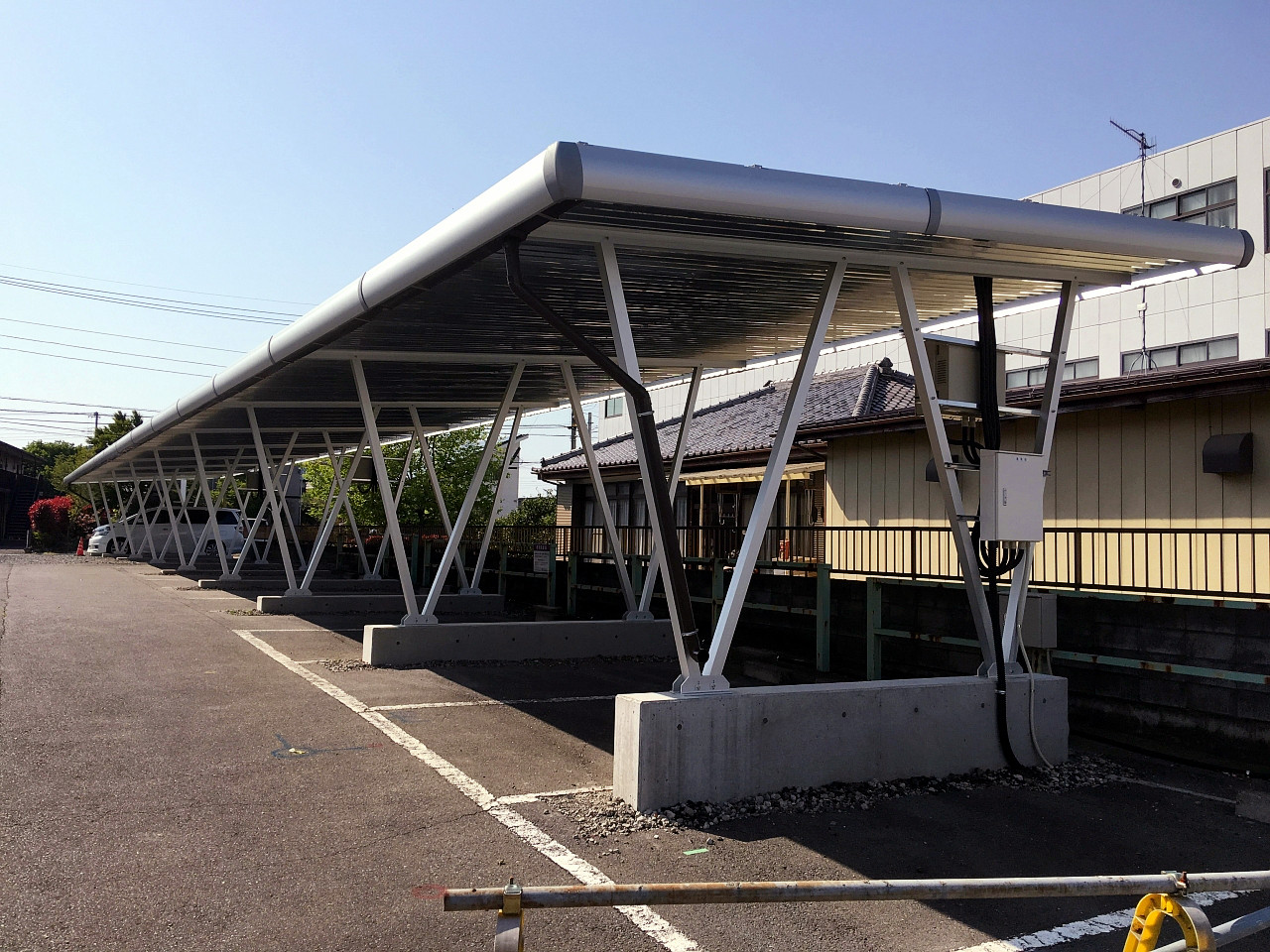

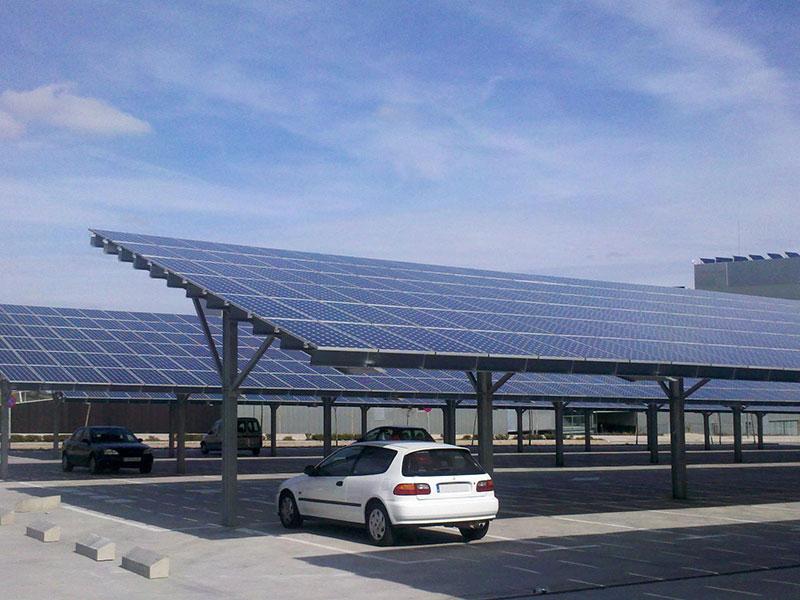

Photo Show of Solar First Carport Mounting System

Solar Carport Mounting SystemGround Mounting structure for carportW shape Carport PV Mounting System
