Easy installation Aluminum Alloy Structure Solar Ground Mounting System

Ground Solar Mounting Systems is applied to large commercial solar plant for public utilities. This is a single column mounted system which is suitable for both frame and frameless modules.
  • Item NO.:

    SF-GM-005
  • Payment:

    L/C, D/A, D/P, T/T, Western Union, MoneyGram.
  • Price:

    $0.06/w
  • Product Origin:

    Xiamen China
  • Shipping Port:

    Xiamen
  • Lead Time:

    2 weeks
  • Product Detail

Product Description:

1. Overview

Ground Solar Mounting Systems has been developed for mounting the PV array system on the open fields. The steadiness and safety of this product is complied with the international structural mechanics and construction acts.Ground mounting system can be installed on the different foundation solutions, such as concrete with pre-buried bolt, direct buried and ground screw pile.This product is assembly by hot galvanized steel and anodized aluminum alloy, with great anti-corrosive suitable for outdoor using. According to the practical requirements, the system can be planned and customized in the factory to avoid welding and cut on the spot, saving your time and cost.


2. Features

1). Easy installation:

Planning and machining in the factory saving your time and cost.

2). Great Flexibility:

The ground array can be planned from kilo-watto to mego-watt.

3). Steady and safety:

Design and check the structure according to the structural mechanics and construction acts.

4). Excellent duration:

For outdoor using, all the material selected with high class anti-corrosion protection.


3. Main Technical Parameter

Installation site:   Open field
Tilt angle: 10-60deg
Building Height: up to 20m
Max Wind Resistance: up to 60m/s
Snow Load: up to 1.4KN/m2
Standards: AS/NZS 1170 and other international standards
Material: High class aluminum alloy, stainless steel, galvanized steel
Foundation Solution: Concrete with pre-buried bolt, direct buried, ground screw etc.
Color: Natural or optional
Anti-corrosive: Anodized, hot galvanized
Warranty: 10 years
Duration: More than 20 years

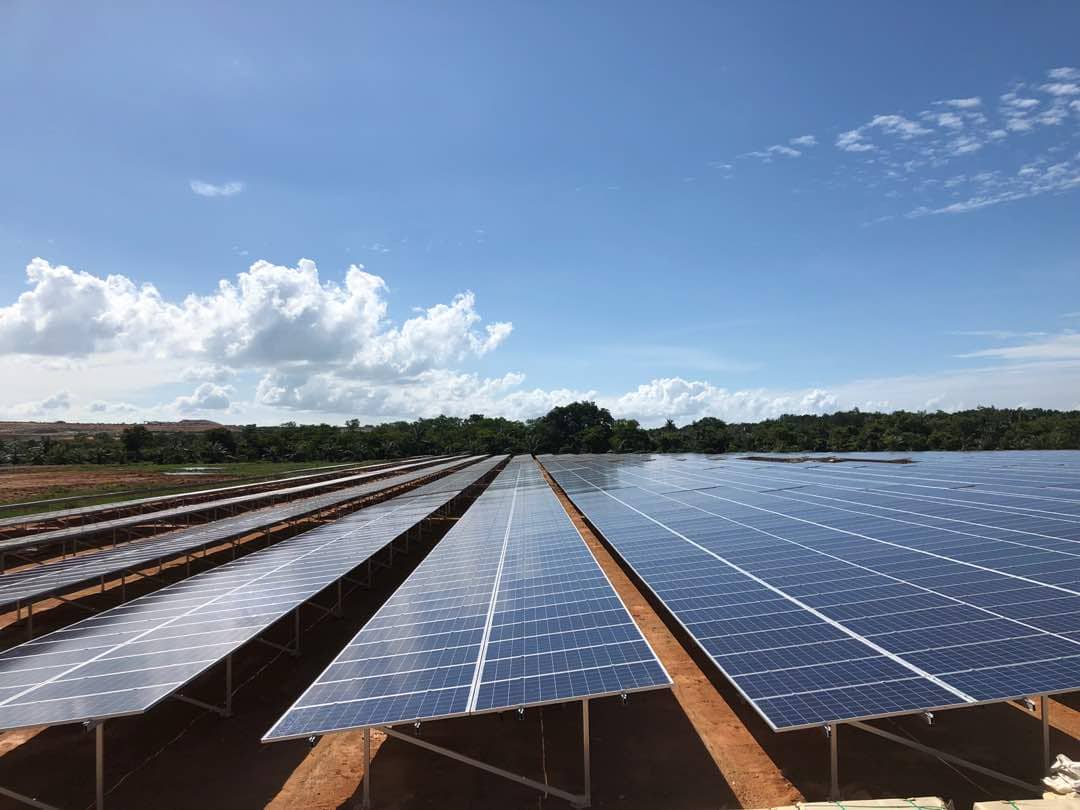

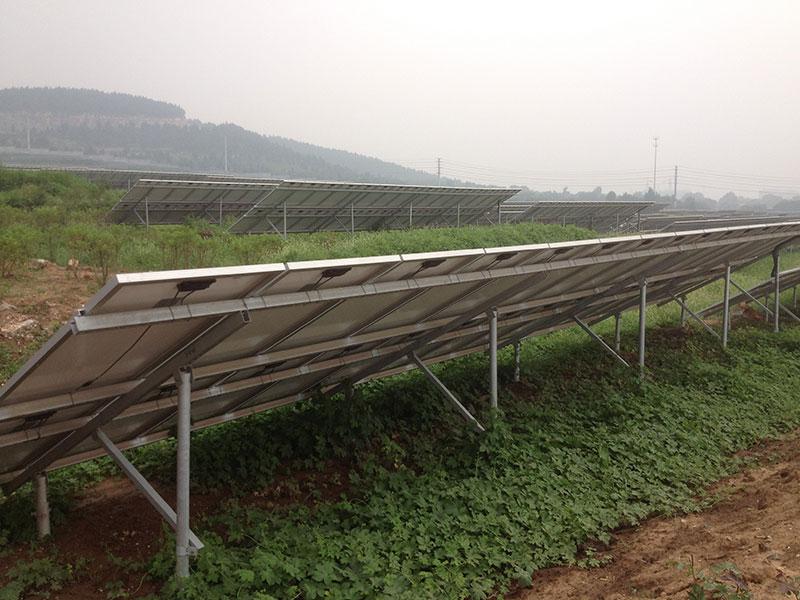

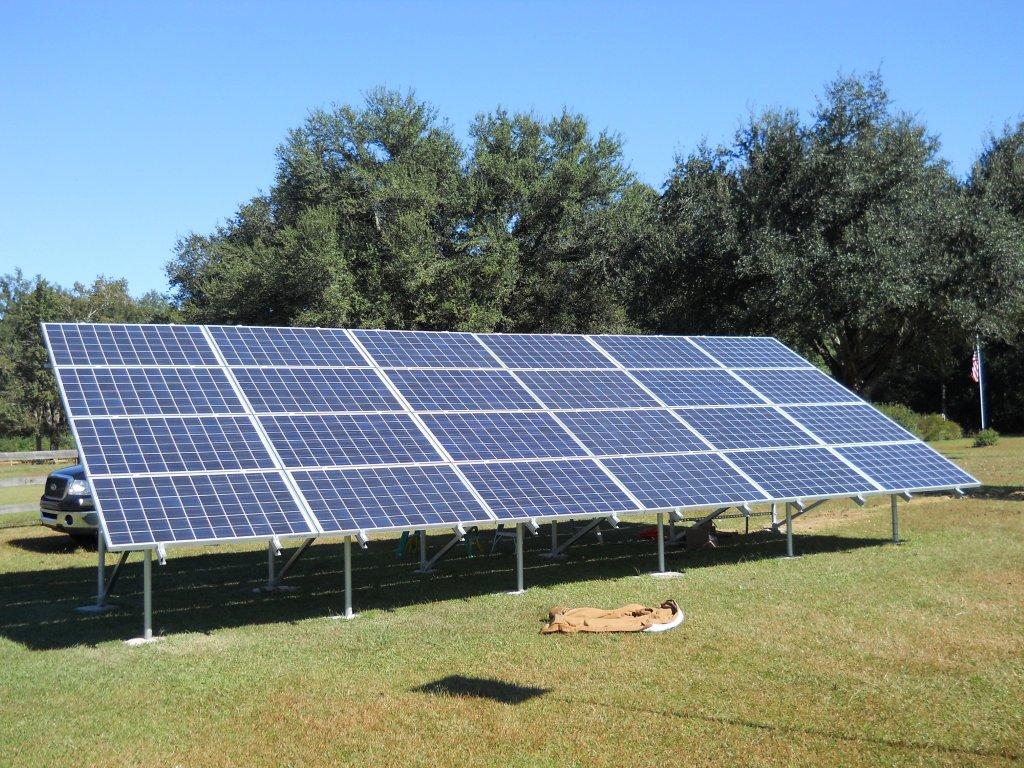

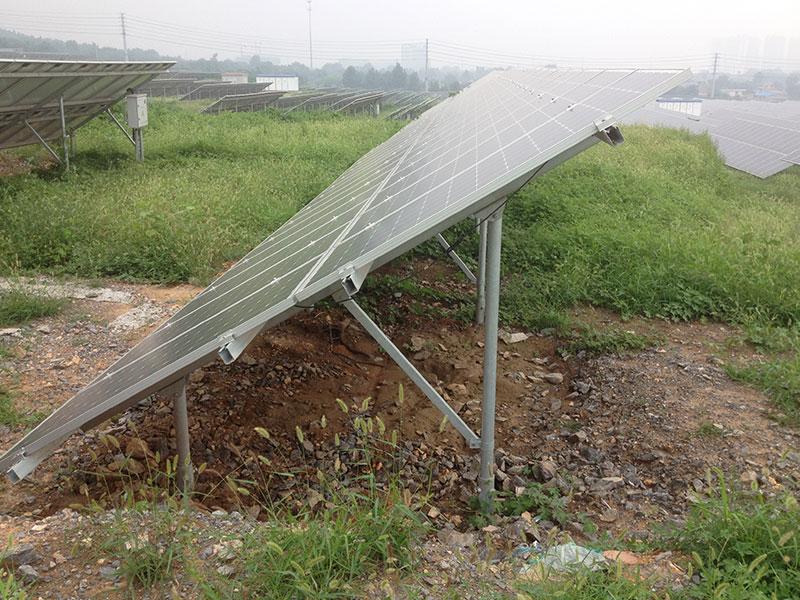

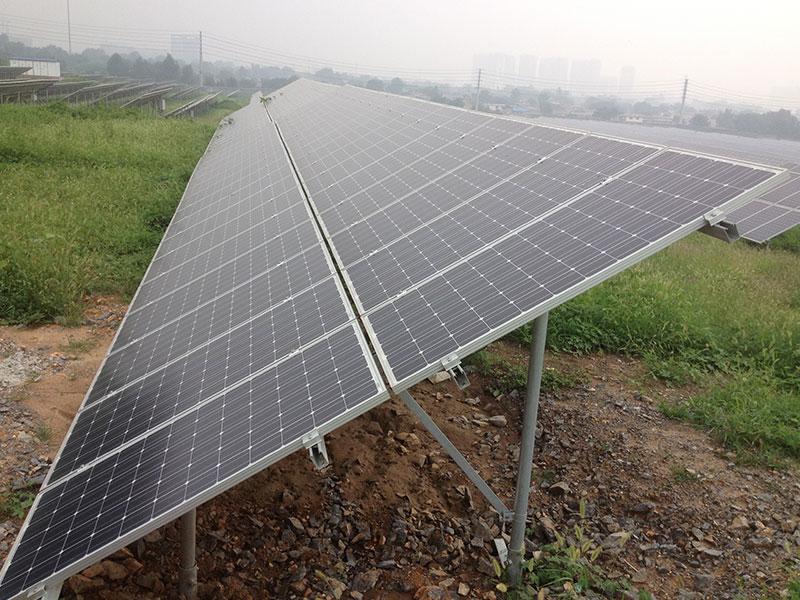

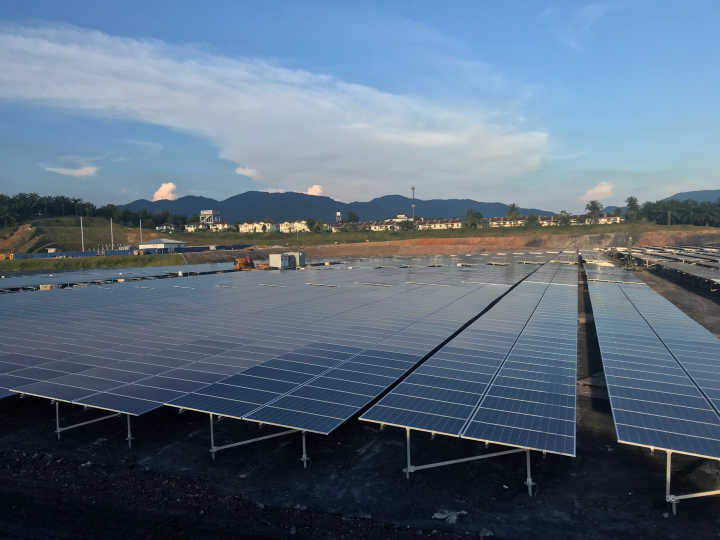

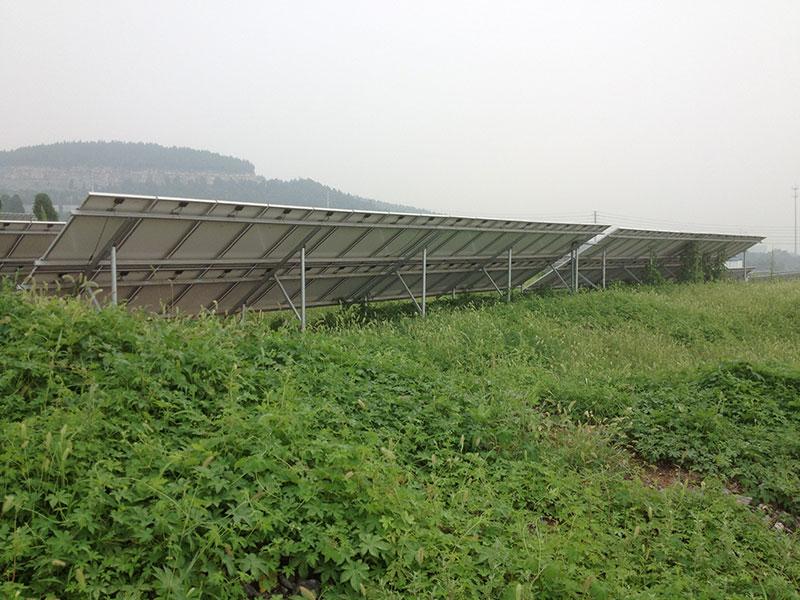

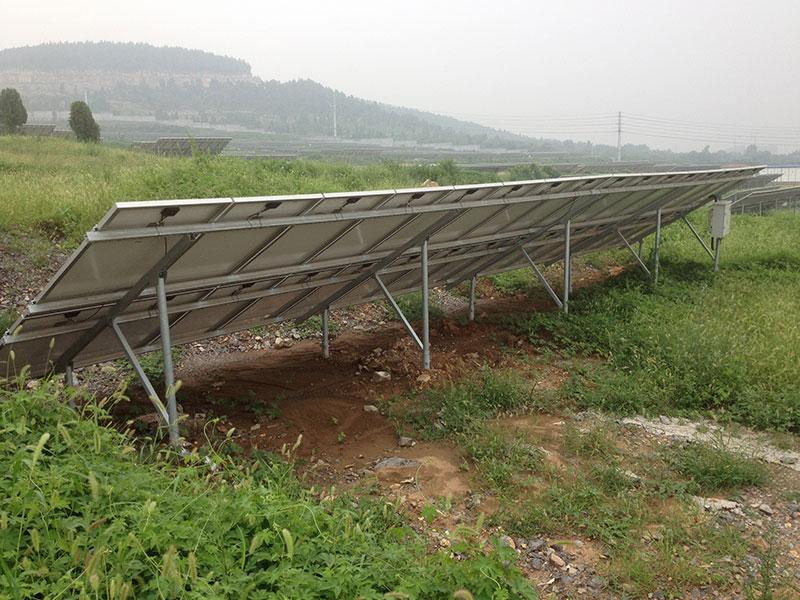

4. Application

Alumimum Mounting Brackets


Solar Ground Mount


Alumimum Ground Structures
