Item NO.:
RS-WS-60WPayment:
L/C, T/T, D/P, Western Union, PaypalProduct Origin:
ChinaColor:
NormalShipping Port:
Xiamen,ChinaLead Time：
20-30 working daysProduct description

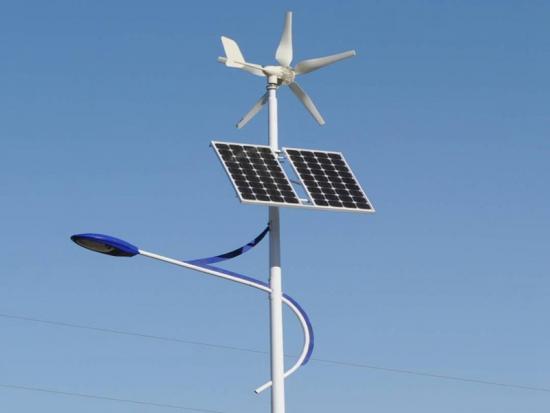

Two charging mode solar street lights are designed into one combined system,if there is sunlight bu no wind energy,the solar panel can charges the battery,meanwhile,if there is wind energy but no sunlight, the wind turbine can charge the battery.If both wind & solar energy is good enough ,both can charge the battery.

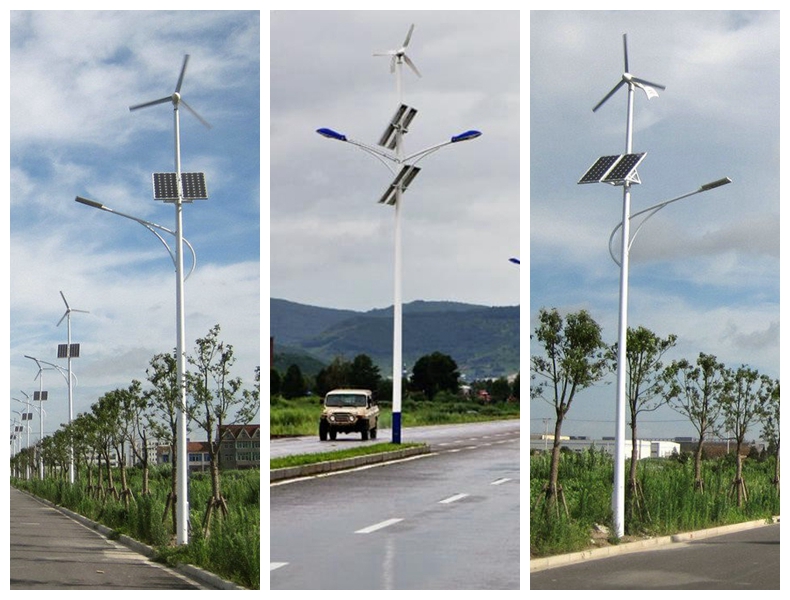

Major application if wind and solar street light: Highway ,Main road of city ,school campus road ,sidewalk,pathway,farm& ranches lighting,villa lighting ,landscape lighting -park,square etc.Especially used for those area with good wind energy.
|
Model No. |
SF-WS-50W |
SF-WS-60W |
SF-WS-80W |
|
|
Performance |
Running hour per day |
above 12 hours, 360 days no off |
||
|
Battery backup days |
5-7 days |
|||
|

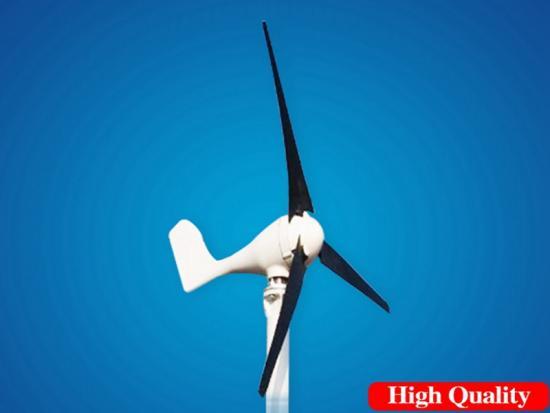

Wind Turbines |
Rated voltage |
24V |
||
|
Rated Power |
300W | 300W | 400W | |
|
Rated vellocity |
13m/s |
|||
|

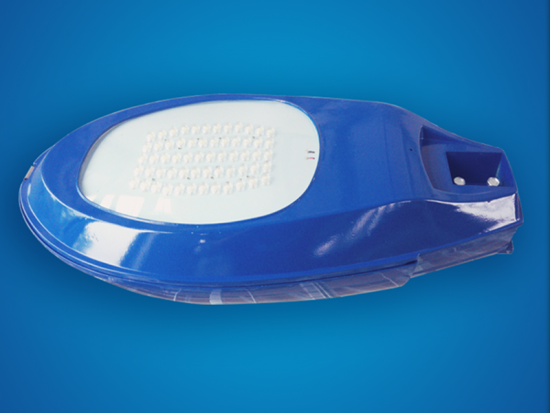

Light Source |
Working temperature |
-40 - + 75℃ |
||
|
Power |
50W | 60W | 80W | |
|
Lumens |
5500LM | 6600LM | 8800LM | |
|
Color Temperature |
3000K-6000K | 3000K-6000K | 3000K-5700K | |
|
Lighting Pole |
Height (M) |
7 | 8 | 10 |
|
Material |
Aluminum/Q235 |
|||
|
Process |
Hot-dip galvanized |
|||
|
Battery |
Capacity |
120AH × 2pcs |
150AH x 2pcs | 200AH X 2pcs |
|
Type |
Lithium Battery |
|||
|
Controller |
Control Mode |
Photocell dimmable control + time contro |
||
|
IP Grade |
IP 65 |
|||
|
Protective Function |
Overcharging, discharging, voltage surge, reverse polarity |
|||

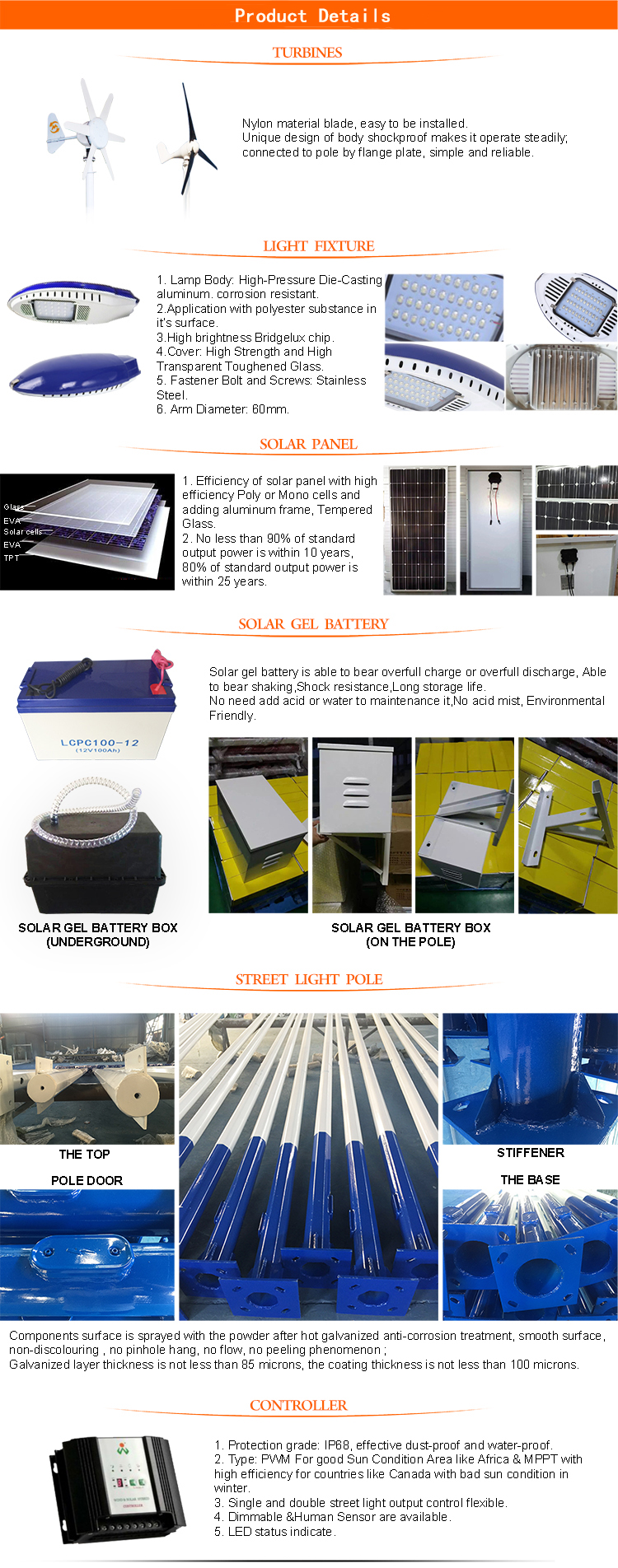

Product Details
Applications
